Electronic Ignitions: Dyna & Kawasaki OEM / Ignition Advance Unit

We often have good, used electronic ignitions in our inventory.....Any ignition we sell as a "good used"
ignition has been test run on a bike to make sure.....It has to get through us before it goes to you.....
If a used electronic breaker suits ytour budget better than a new one.....Just ask!.....
We have all the factory ignition parts in stock.....
e-mail us at >

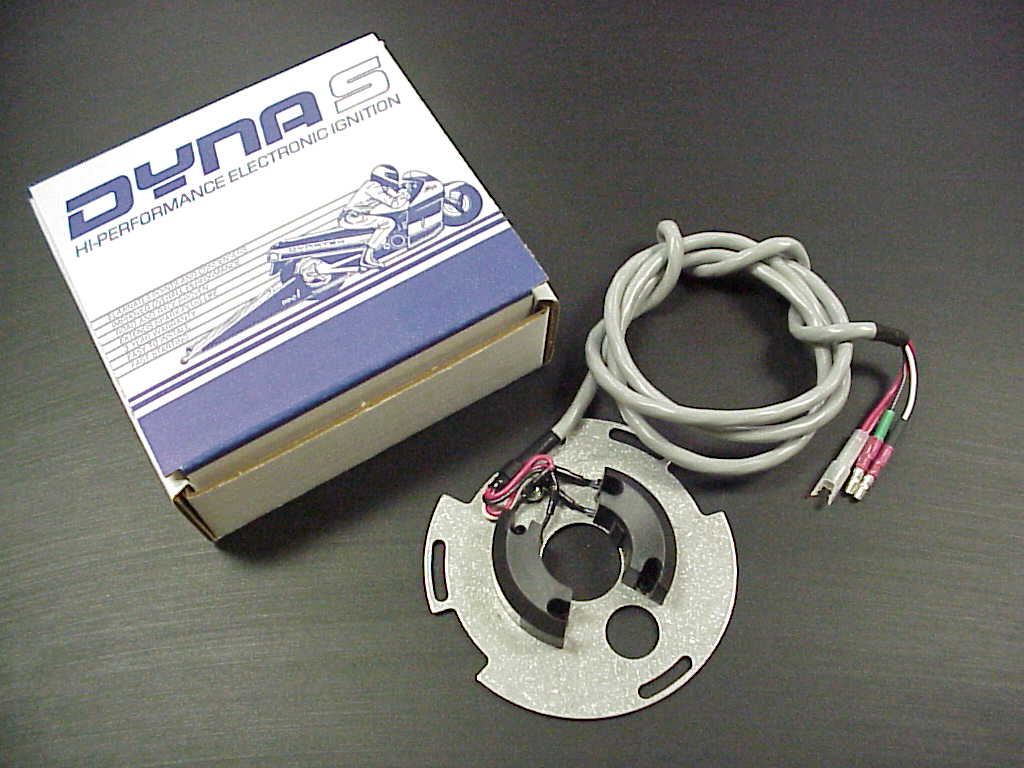

The simplest way to change to an electronic breaker and eliminate your points....

It can also replace the defective pickup coils in your 1979 or 1980 model 1000........
This plate, and the provided cam adapter for your advance mechanism, are a direct replacement for the point plate in your Kaw 900 or 1000....
It will work in any 1973 thru 1980 900 or 1000 model.....
These are compatible with stock, Accel, Dyna, and all other 3 ohm coils....And also will work with the 79 & 80 1 ohm coils with the ballast resistor.......
Complete with easy to follow instructions.......$159.95

If purchased with Dyna / Accel Coils  $149.95

Note :  Dyna recommends using the #005 advance
unit (as used on the 1976 KZ900 and 1977 KZ1000 models) with this breaker (shown below on this page) That advancer is sold at a discounted price if purchased with this ignition.

While the #005 advancer is not essential,  it allows for easier, more accurate ignition timing -than those used on the 1973 thru 1975 Z1 models - -  and the 1978 and later Kz1000's

In Stock at Redline Cycle


For all 1979 and 1980 1000 models with factory electronic ignition...........(all models except 1979 KZ1000B3 / LTD)

Kawasaki OEM NOS new ignition breaker assembly

Does your KZ1000 lose 2 cylinders after running for 15 or 20 minutes?   Failure of the breaker plate on these models is not uncommon.....

Replace it with the real deal.....brand new!!
             ....Easy installation: No ignition timing needed


Limited Availability

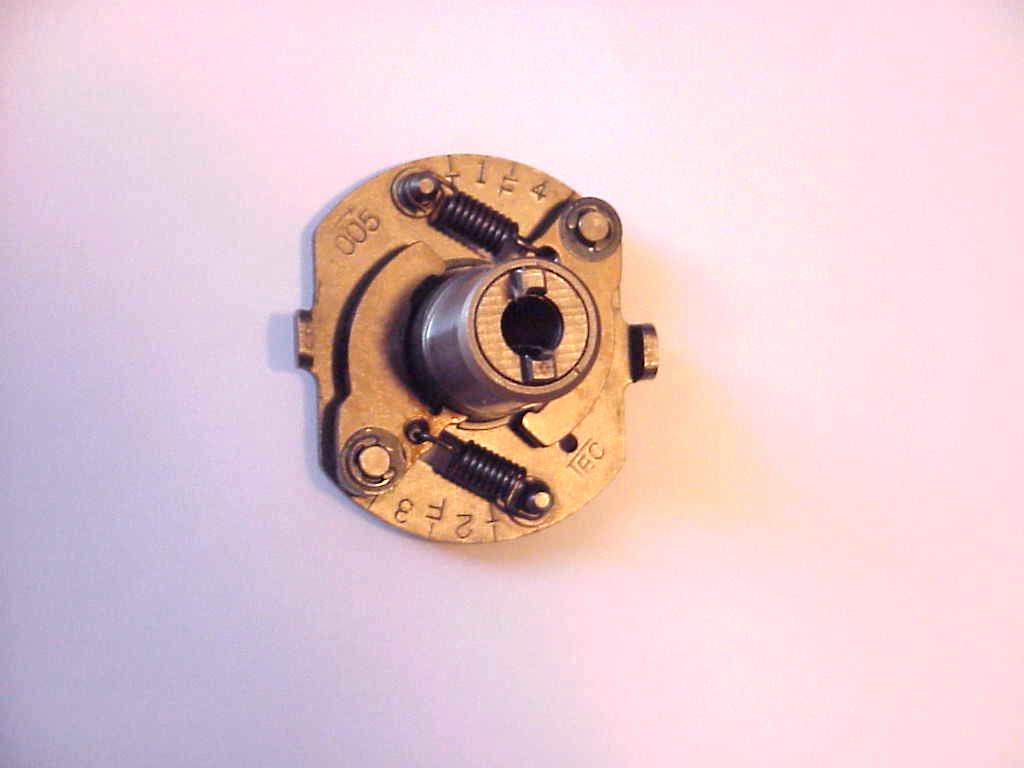

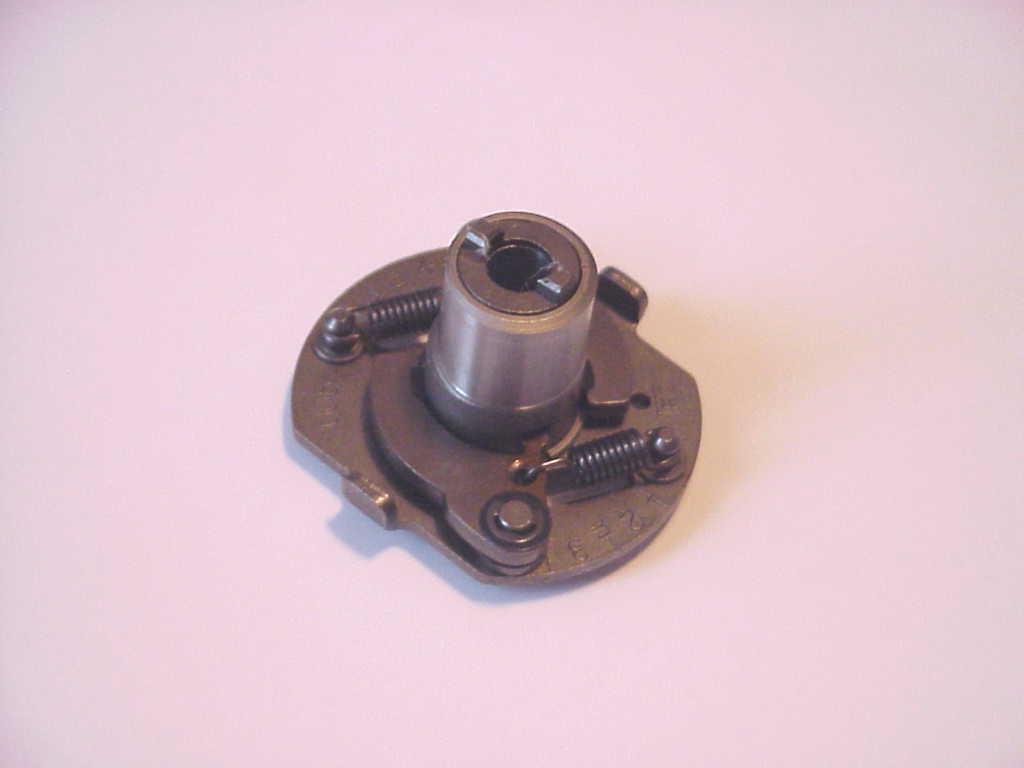

Advancer 1 Advancer 2 Advancer 3

NEW ignition advance assembly - Made in Japan - Excellent quality -    $174.00
If purchased with Dyna ignition at top of page > $159.00

This advance unit is made in the style and to the specs of the 1976-1977 KZ900 / KZ1000 point ignition models ...
(Advance unit #005)
 20 degreee advance at idle / 40 degrees fully advanced

Can be used  as a direct replacement for all 1973 thru 1979 Kaw 900 & 1000 point ignition models,
and works for all applications with aftermarket electronic ignitions that utilize the stock advancer (like the Dyna S) -

Can also be used on all 1979 - 1980  electronic igntion models by swapping the point cam with your OEM projected cam

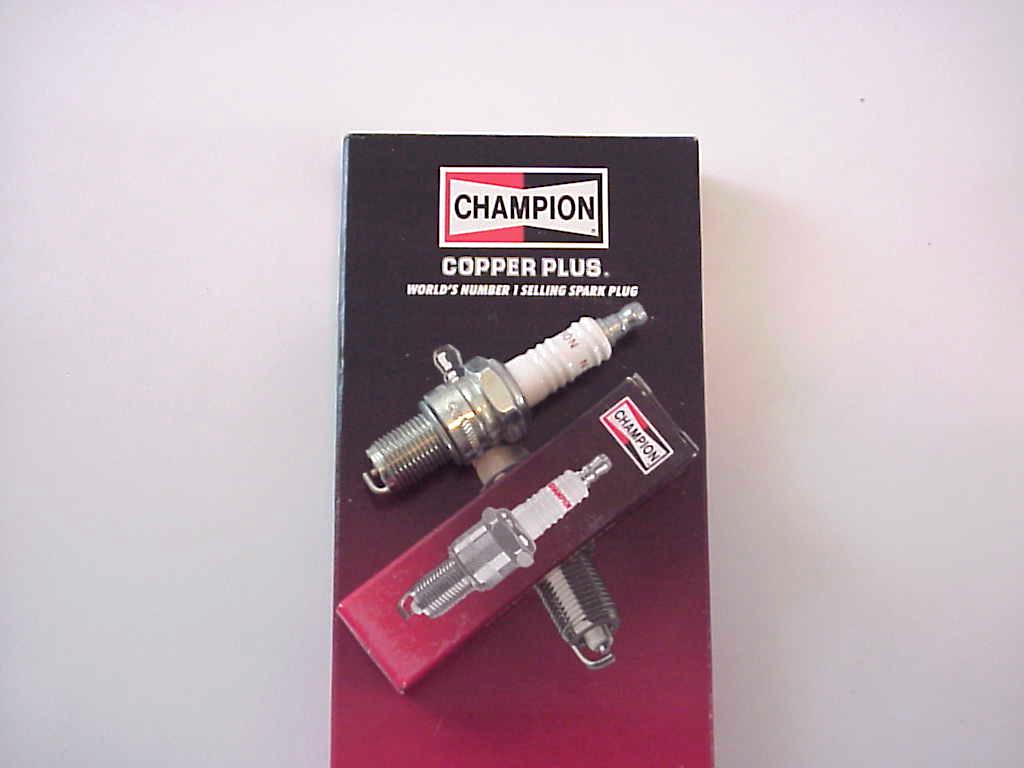

Champion Spark Plugs

Champion provides a non-resistor
plug for the 1973 thru  1980 Kaw 900's and 1000's

In Stock at Redline Cycle
                            $5.99 each

NOTE:  These are equivalent to the NGK B8ES - -
which are the correct application plugs for all 1973 thru 1980 Kaw 900's and 1000's -

Most, if not all current application charts show the NGK "BR8ES" as the correct application for these bikes -
The "BR8ES" plug IS NOT the correct plug for thes bikes

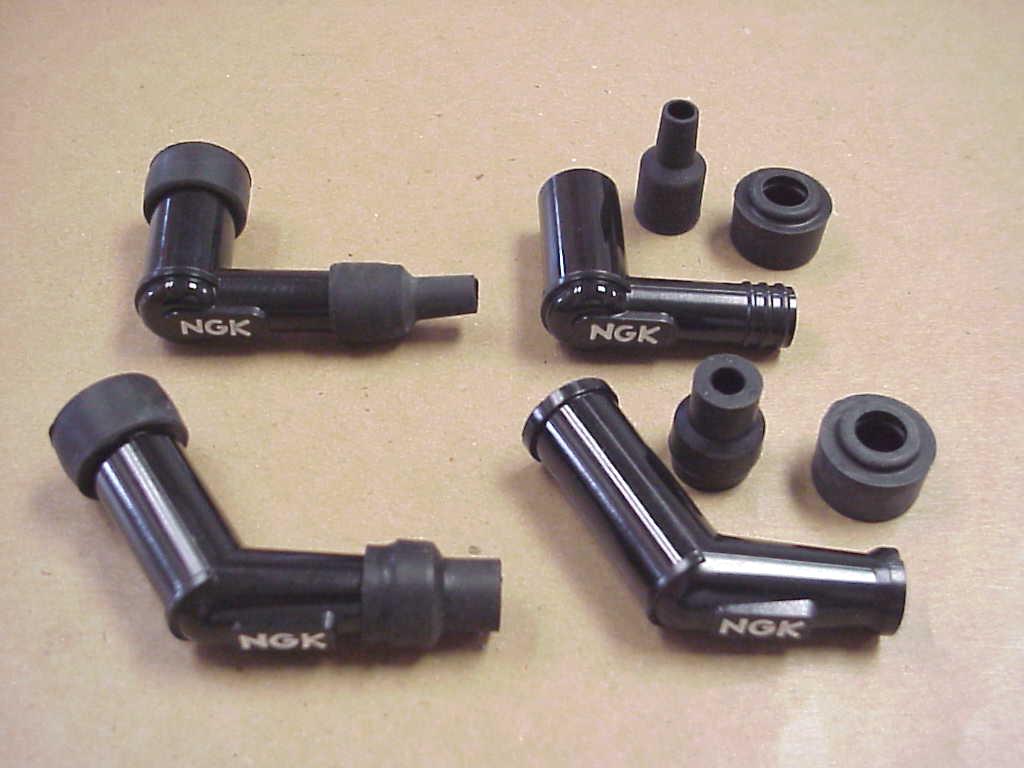

NGK resistor spark plug caps......
This is one of the most overlooked items necessary for a good ignition tune-up.........Half of the Kaw 900's and 1000's on the road are still using their 30 year old plug caps, most owners unaware that they gain resistance or fail altogether over time....Not to mention the worn out rubber seals.
Simply remove (unscrew) the old cap from the wire end, cut off about 1/8" of wire to make a fresh end, shoot in a little contact cleaner as a temporary lubricant, and screw the new ones on........Big improvement in spark!
For use on any 7mm wires - Stock or aftermarket.....Most 900's and 1000's will use two 90° caps (LB05F) and two 45° caps (VB05F).......

In Stock at Redline Cycle
                                    $7.49 each cap
