Float Bowl Gaskets / Carb Top Gaskets

 For the o-rings for the 1973 thru 1980 carbs... Click Here

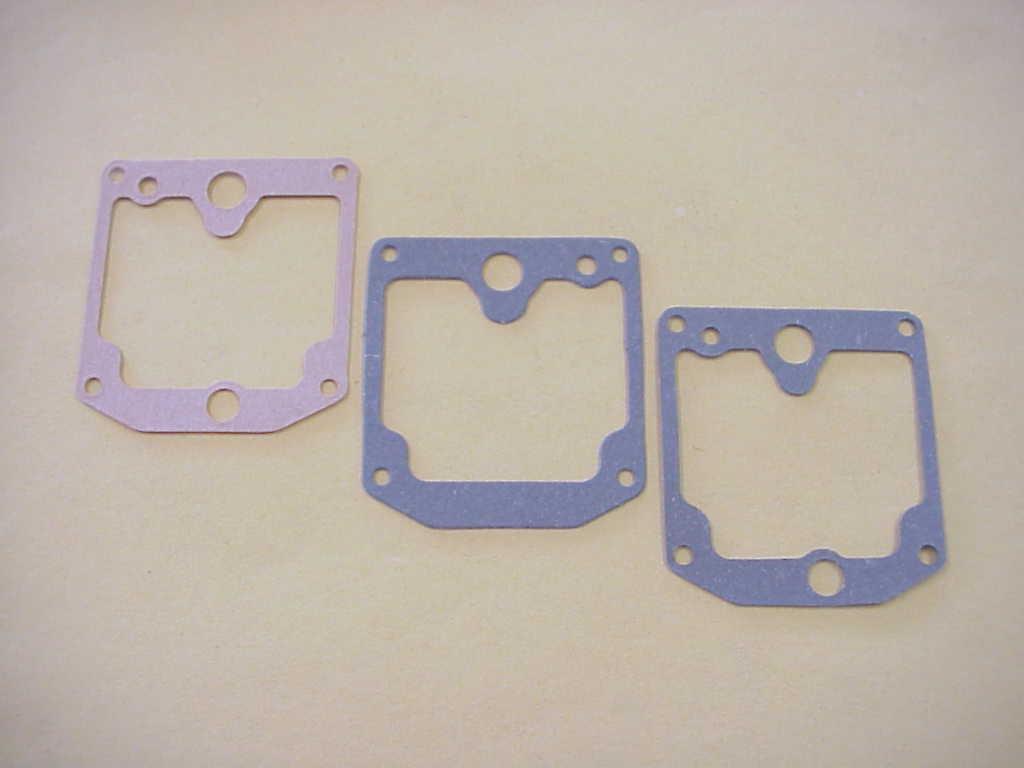

2 types of float bowl gaskets for 1976 thru 1980 900       & 1000 models ..... Left: Standard Kawasaki OEM float bowl gasket....       Note: We no longer carry these gaskets - - These are          NOT in the same league as the original Kaw OEM             gaskets....Price is outrageous, and the quality poor - Center & Right: Made in Japan: These aftermarket bowl      gaskets have sealing capability way beyond most -     Excellent for float chambers with persistent leaks... Center: For 1976 -1977 KZ 900 models (not always supplied                 without lower mixture screw cutout - Excellent                        sealing either way) Right:   For 1977 thru 1980 1000 models       (including models with accelerator pumps) .....                        Both Types  $9.00 each In Stock at Redline Cycle

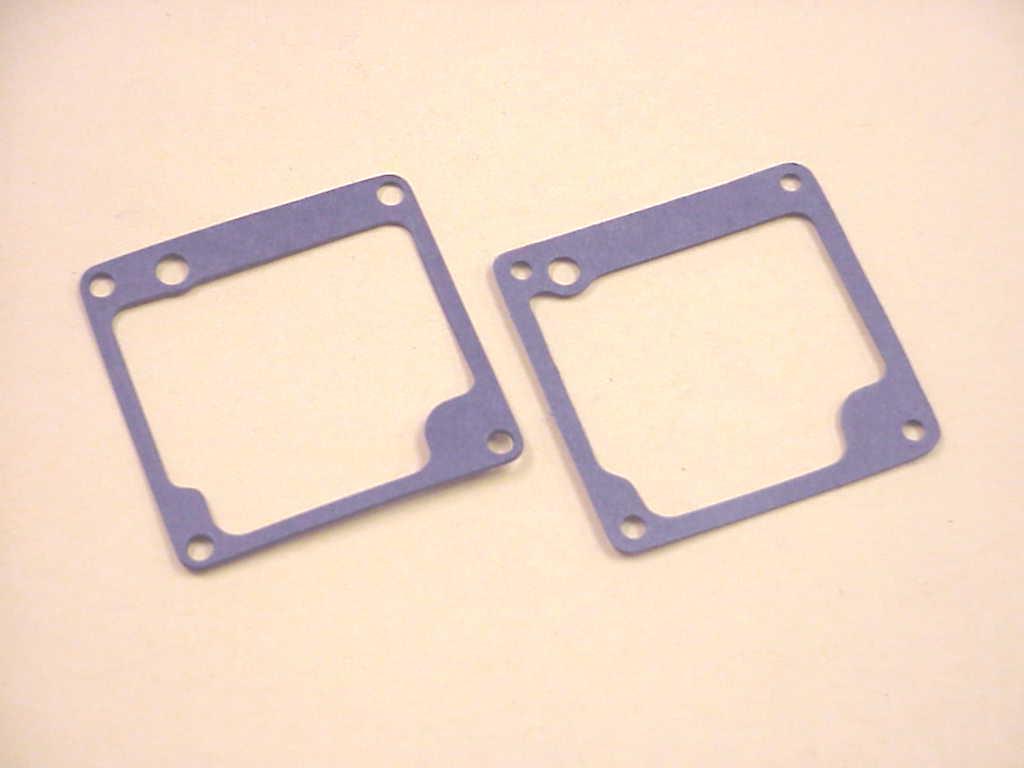

Two different bowl gaskets for Z-1 models...... Left: For all 1973 Z-1's and early 1974 Z-1's, these "far distance choke hole" gaskets are required......Note the distance in the upper left from the mount thread hole to the choke tube hole...... Imported from Japan - Superior sealing qualities......   Right: For late 1974 Z-1's and all 1975 Z-1's, these "close distance choke hole" gaskets are required.......                       Both Types $9.99 each In Stock at Redline Cycle

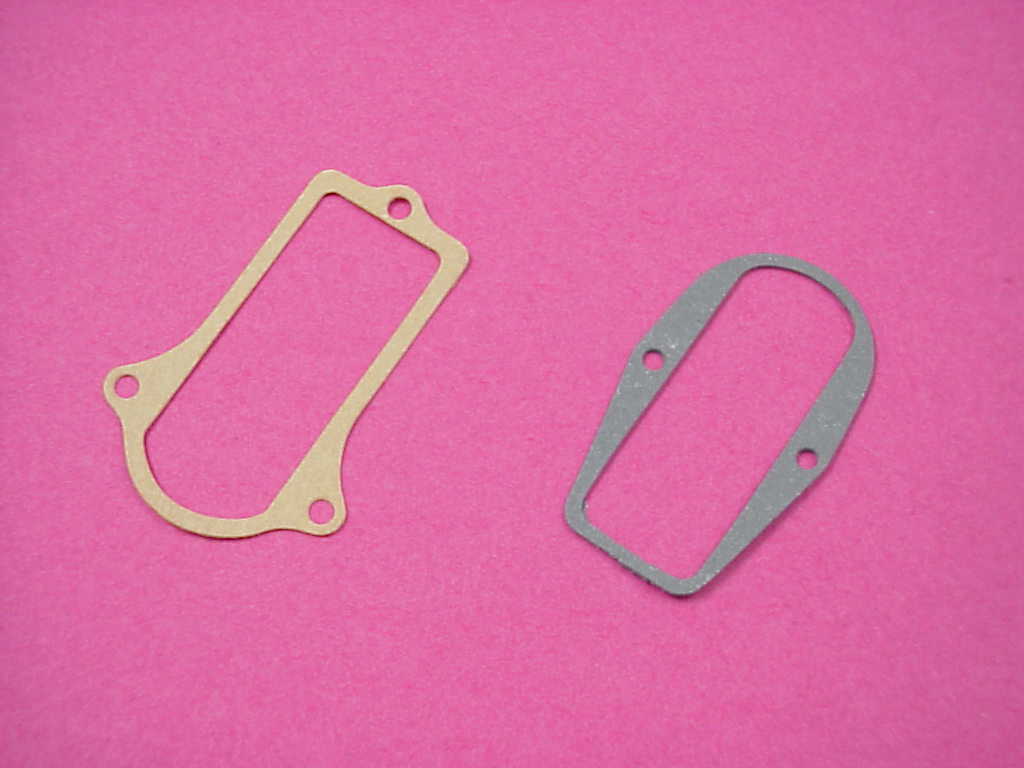

A poor seal at the carb top can reduce vaccuum at low  throttle, and result in idling problems...... Carb top cover gaskets for stock VM26 / VM28 carbs...... Left: Top gasket for all 1976 thru 1980 900 & 1000            models using the stock VM26, VM28 (or VM29           smoothbore) carbs....... Right:  Top gasket for all 1973 thru 1975 Z-1 models using            the original VM28 carbs......                           $4.99 each / $17.99 set of 4 In Stock at Redline Cycle

VM29 Smoothbore applications..... For all VM29's......Float bowl gaskets..... Made in Japan.................                                         $7.95 each In Stock at Redline Cycle

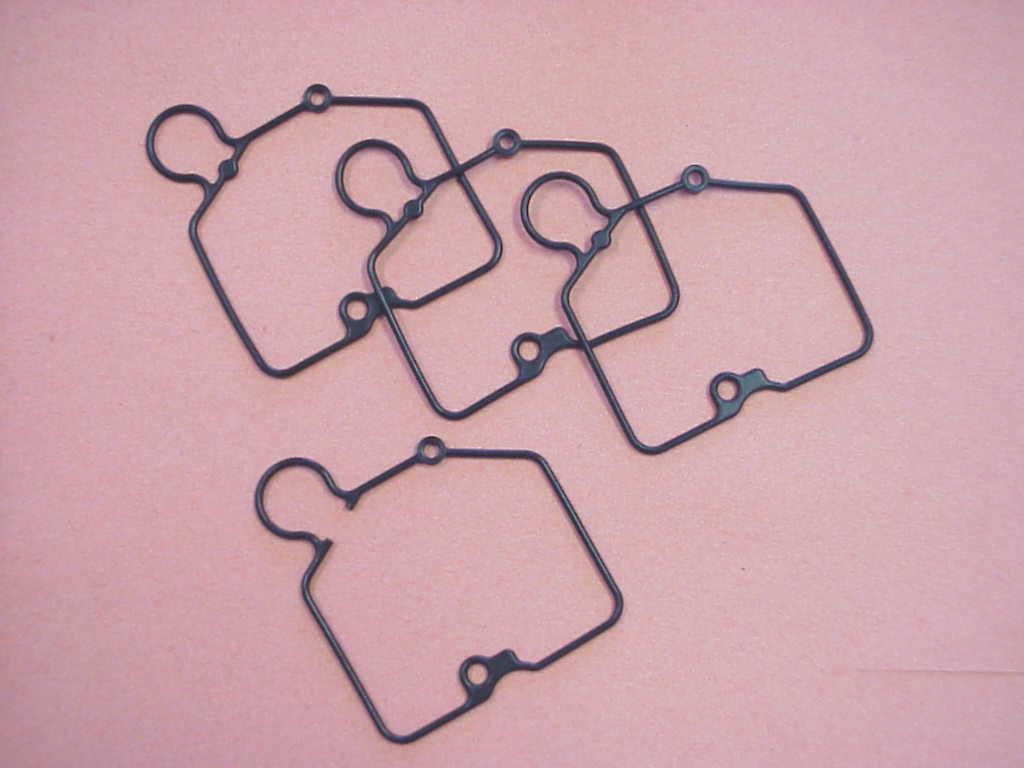

Genuine Mikuni bowl gaskets for the RS Series carbs....                 $5.99 each  /  $23.00 Set of 4       In Stock at Redline Cycle
