Carb O-Rings / Needle & Seat Washers

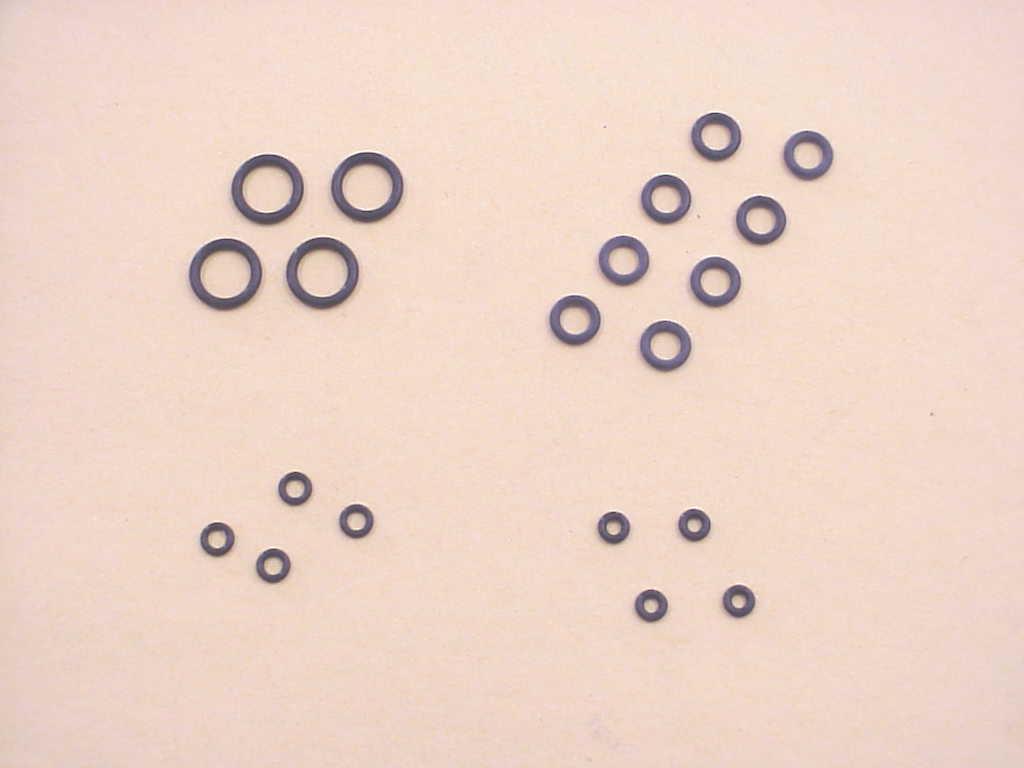

pic of o-rings Kawasaki OEM o-rings for misc. 1973 thru 1980 model applications......

Half of the o-rings you get in those aftermarket rebuild kits are just plain wrong........ Do it the right way.....

Top Left: Choke plunger o-ring (4 per bike) for all 1973
     thru 1980 900 and 1000 models ....  3.99 ea

Bottom Left: Air mixture screw o-ring (4 per bike):
for all 1976  & 1977 KZ900 models (VM26).........
for 1978 Z1-R models (VM28)
for 1979 & 1980 models with air screw adjustment(VM28)
                                                    $3.99 ea.

Top Right: Drain plug o-ring (for all 1976 thru 1980 models)
      Is also main jet tube o-ring for 1977 thru 1980 1000
      models (4 per bike: 76-77 900's)
                (8 per bike: 77-80 1000's)  $2.99 ea.

Bottom Right: Mixture screw o-ring for 1977 thru 1979
       KZ1000 models (4 per bike) 2.99 ea.

In Stock at Redline Cycle

For all 1973 thru 1980 900 & 1000 models with stock carbs.....

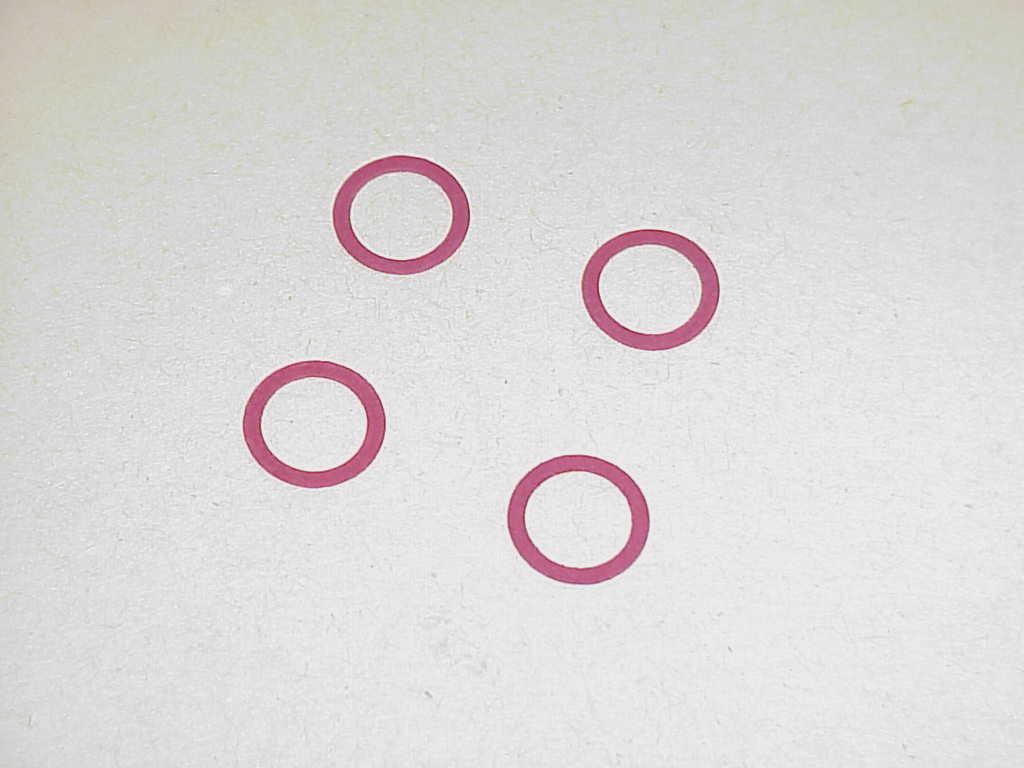

Kawasaki OEM needle and seat sealing washers ........

                             2.99 ea

In Stock at Redline Cycle

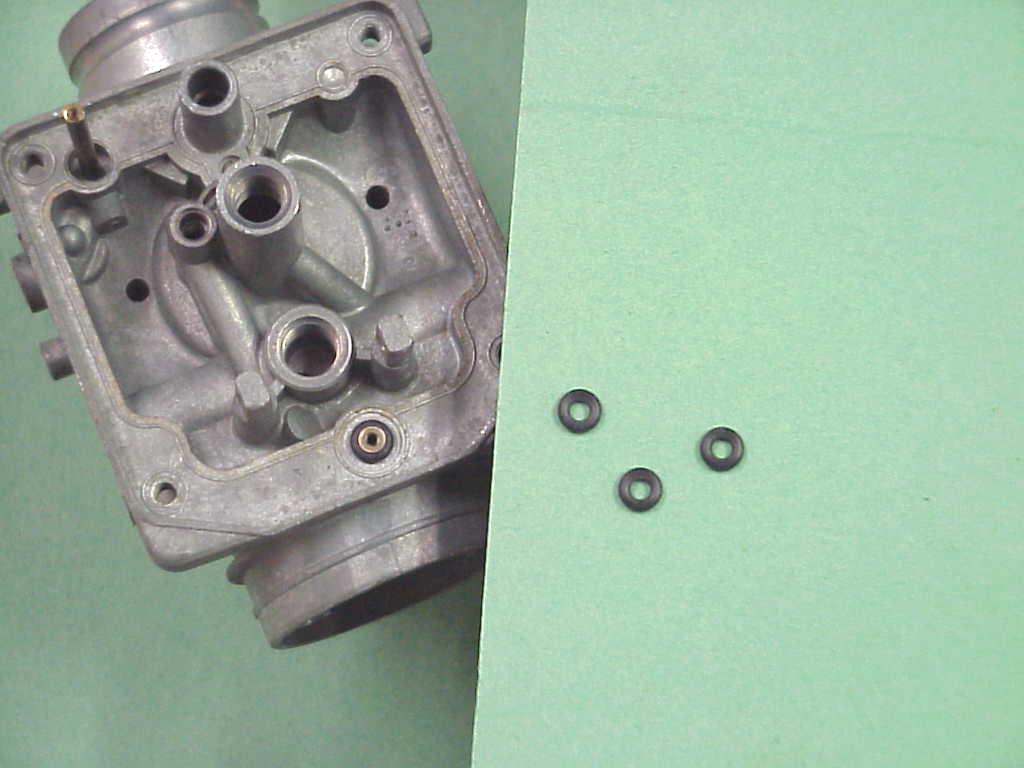

Kawasaki OEM accel pump passage o-rings.......

For 1979 and 1980 KZ1000 models with accelerator pumps......

These o-rings seal the pump nozzle in the carb body.....
If you have a persistent leak at the back of the carb - and know the bowl gasket is good.... These are likely the culprit........

Expensive - But only the OEM ones fit right and do the job......... The aftermarket ones don't work!!
                                   $6.99 each

In Stock at Redline Cycle
