Swingarms - Direct Replacement / Type 1

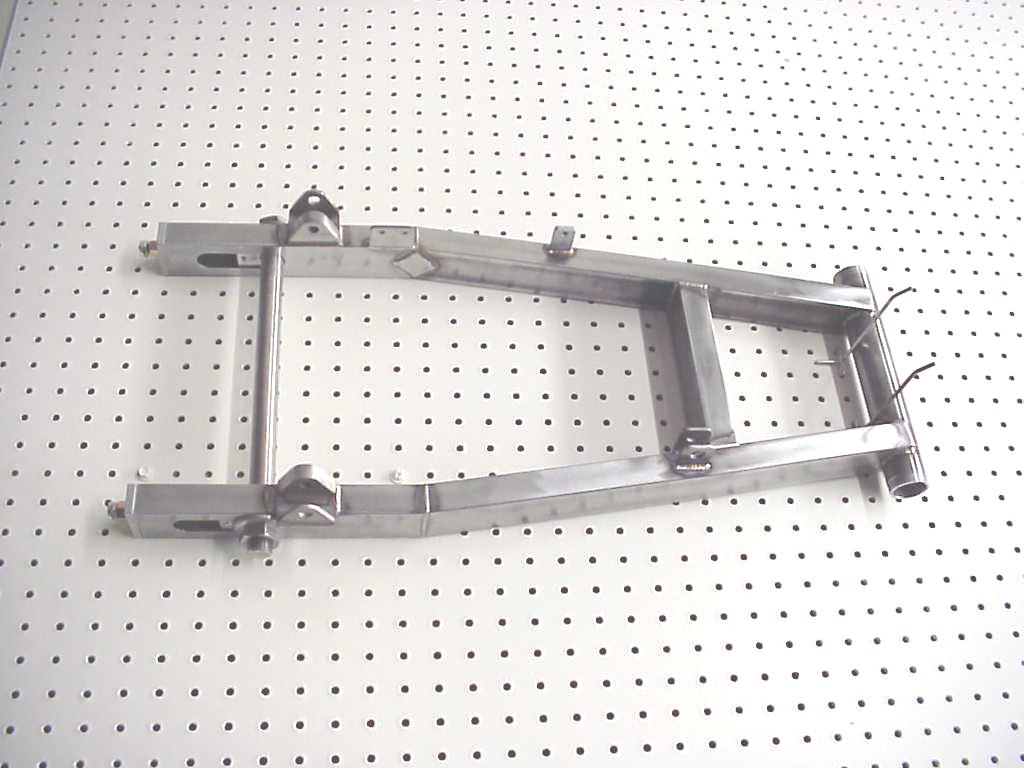

An ultra-high quality box section steel swingarm, available in lengths from stock
to 6 inches over, that is made to fit like a stock swingarm......A closer look will
show you where this swingarm parts company from the others......We have put
a lot of R&D work into the development of these arms....and it has paid off......
These arms are way stronger than stock, professionally made from the best material,
and will accomodate that wide tire you've wanted to put on your bike......
                                          Direct Fit Swingarm ..........................$749.00
                                      If purchased with $200.00 of addl. parts   $724.00
Special Order for 1973 thru 1977 drum brake models & 1977 thru 1980 disc brake models...
From "In Stock" to 3 week wait......And the wait is worth it!...
Call to check availability... Toll-free 877-271-9292

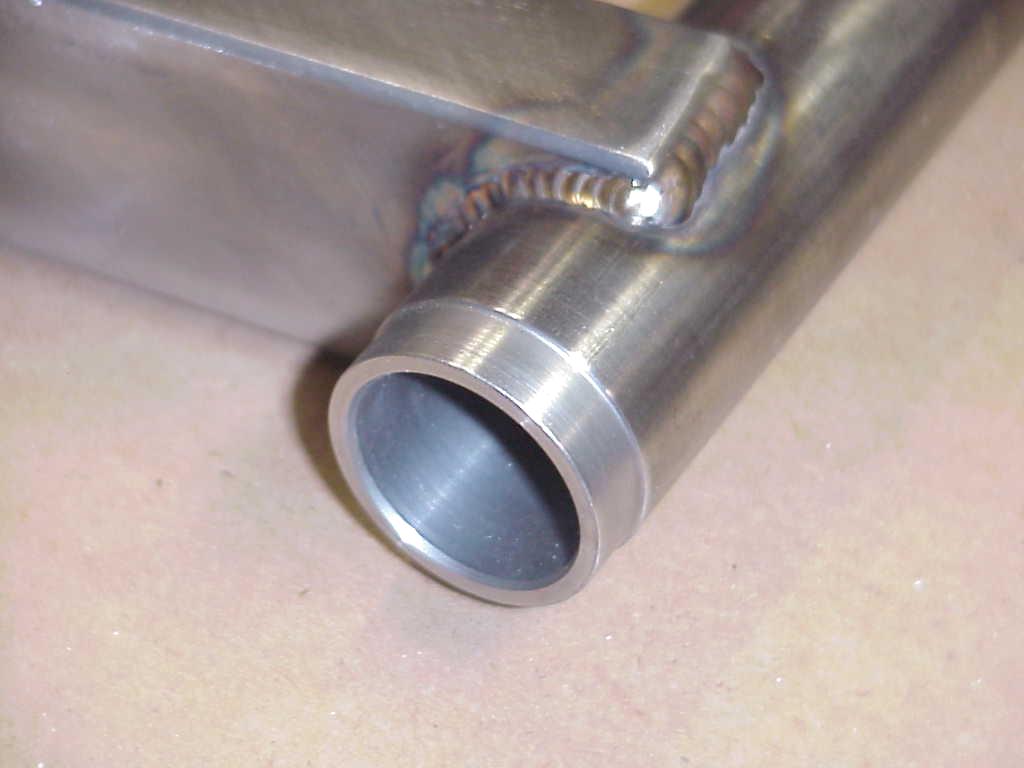

Unlike other swingarms, these actually use the original OEM Kawasaki  needle bearings, bearing shaft, and end seals !!
Use either the 1977 single bearing or 1978 and later double bearing setup.......
The shock mounts are not only way stronger than stock, but are threaded with the same 10mm X 1.25 thread

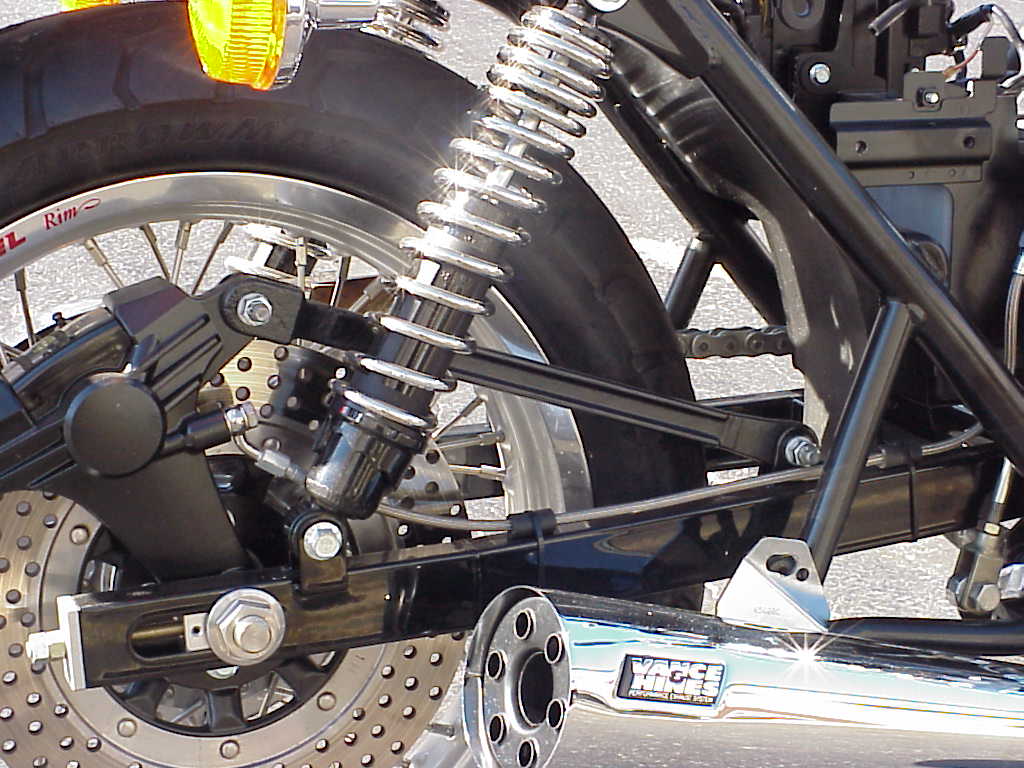

as stock for easy installation......and the shock mount location lowers the rear end of your Kaw 1/2".....

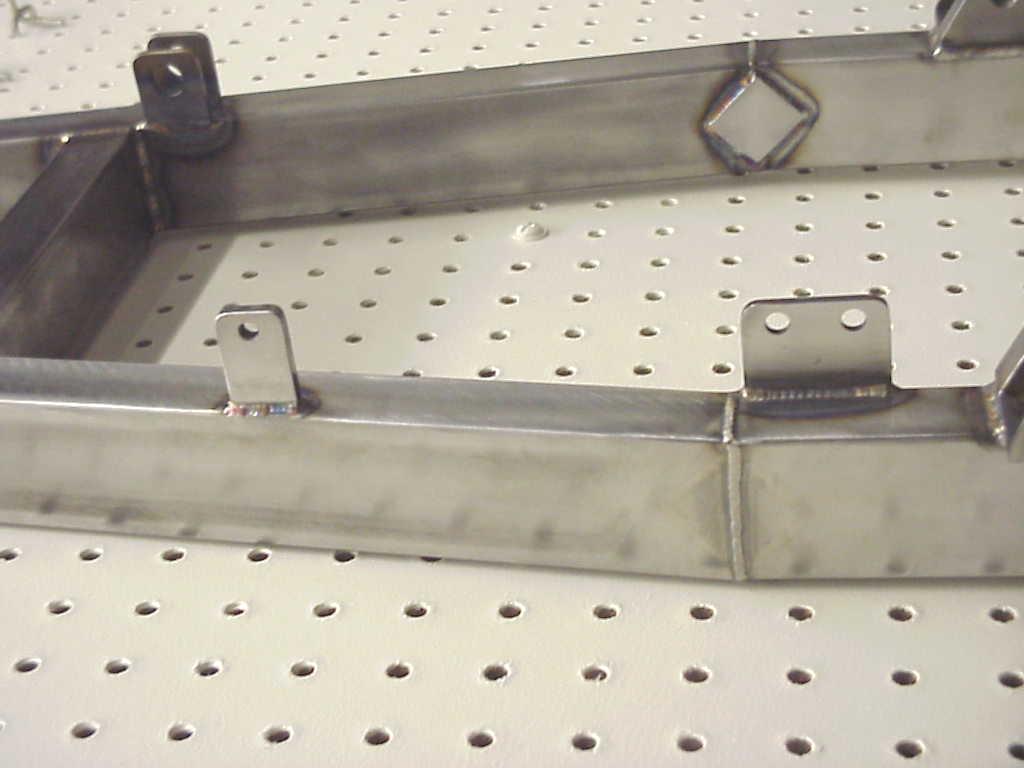

And.... have you ever seen an extended swingarm that accepts the original Kaw LTD style chainguard?.....
This arm does!!......And it even has the original 6mm threads for mounting!!........
......And we also have a version with no chainguard tabs for use with custom chainguards.......
See our  Chainguard  section  for more info ........

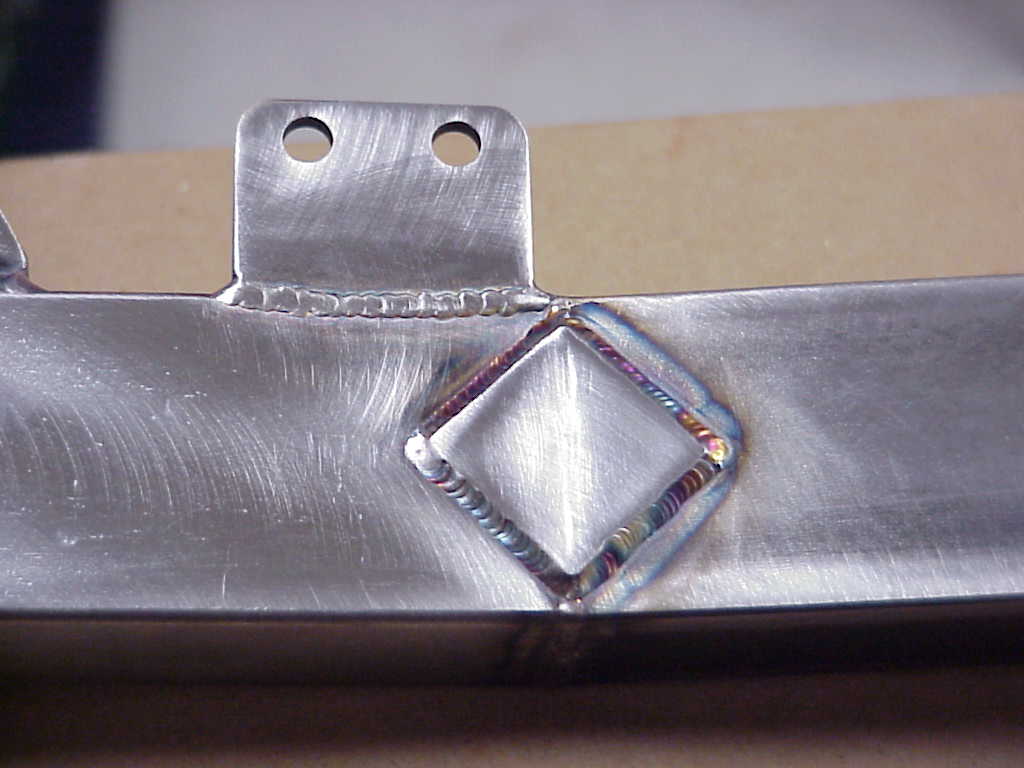

A diamond-shaped brace is welded to the inside of the arm for added rigidity......unseen.......These arms include high

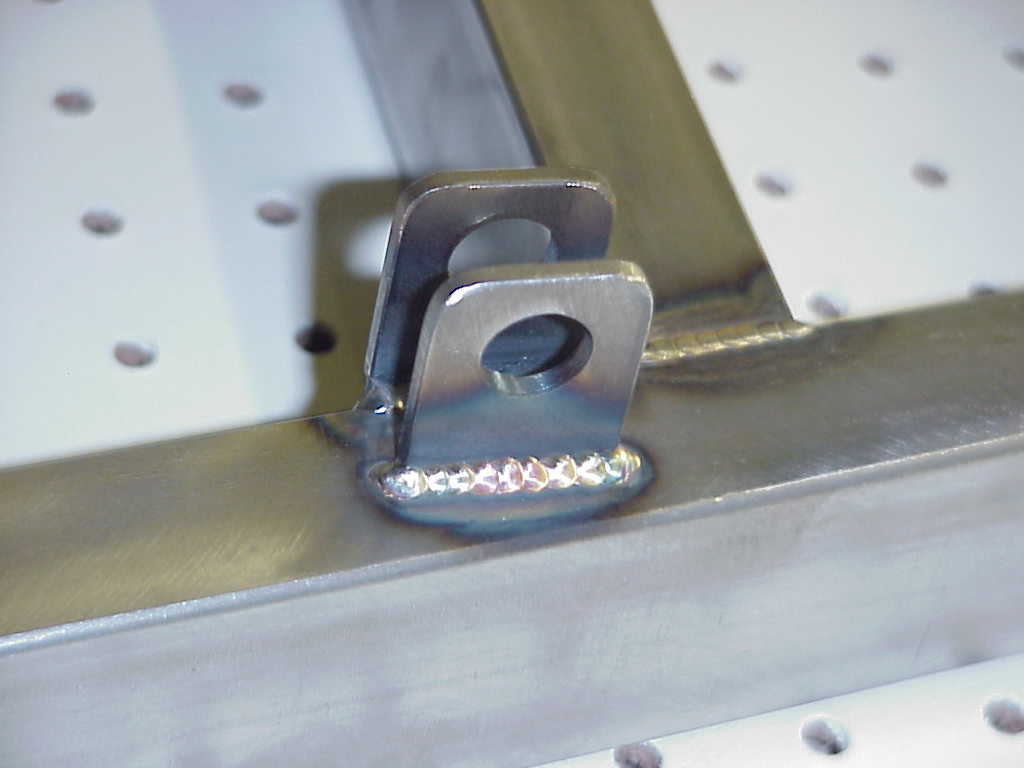

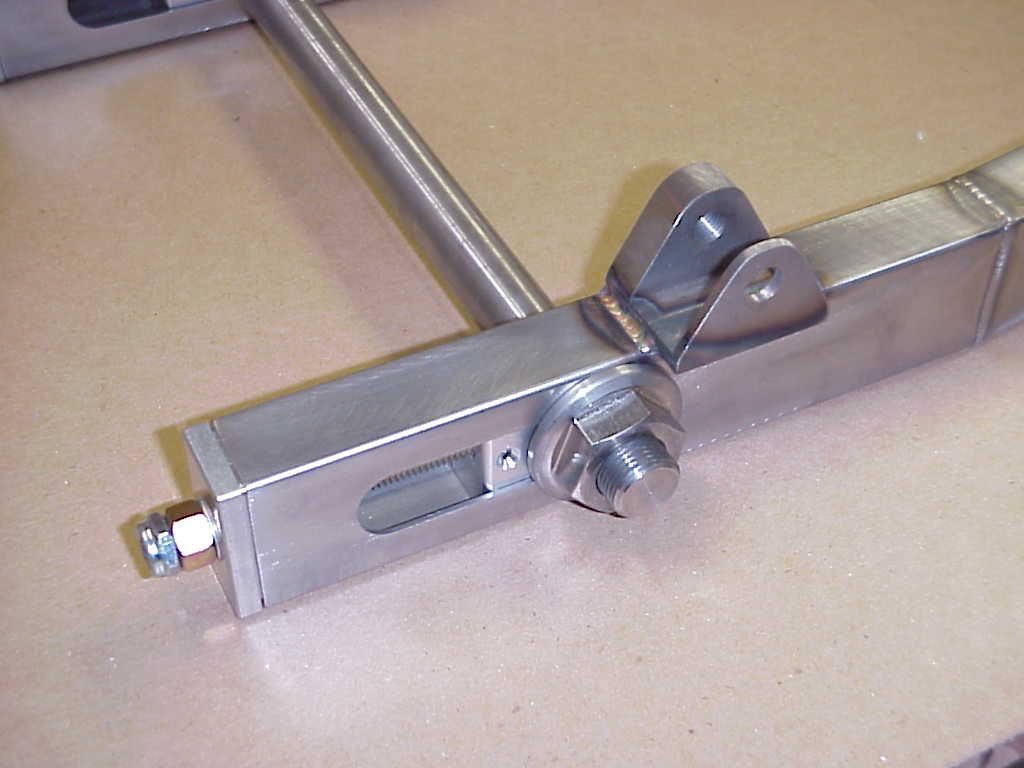

quality axle and chain adjusters........Caliper stay brace allows the use of the original stay bar.........These swingarms
come smooth finish bare steel, and can be painted, or powder coated.......Bearings, bearing shaft,
and bearing seals are not included.....You can use your existing shaft and end seals in most cases.....
See our  Swingarm Parts  section for more info  ................
A Kawasaki 900-1000 swingarm that is made for a Kawasaki 900-1000!!
