Swingarms - Direct Replacement / Type 2

                          These arms are no longer available - We now only sell the First Generation Direct Fit Arms  ......

This page left here for reference only.......

                                            These arms are avalable for.......

All 1973 thru 1977 900cc drum rear brake models.....
                                      All 1976 thru 1980 900cc & 1000cc disc rear brake models (Except shaft).........

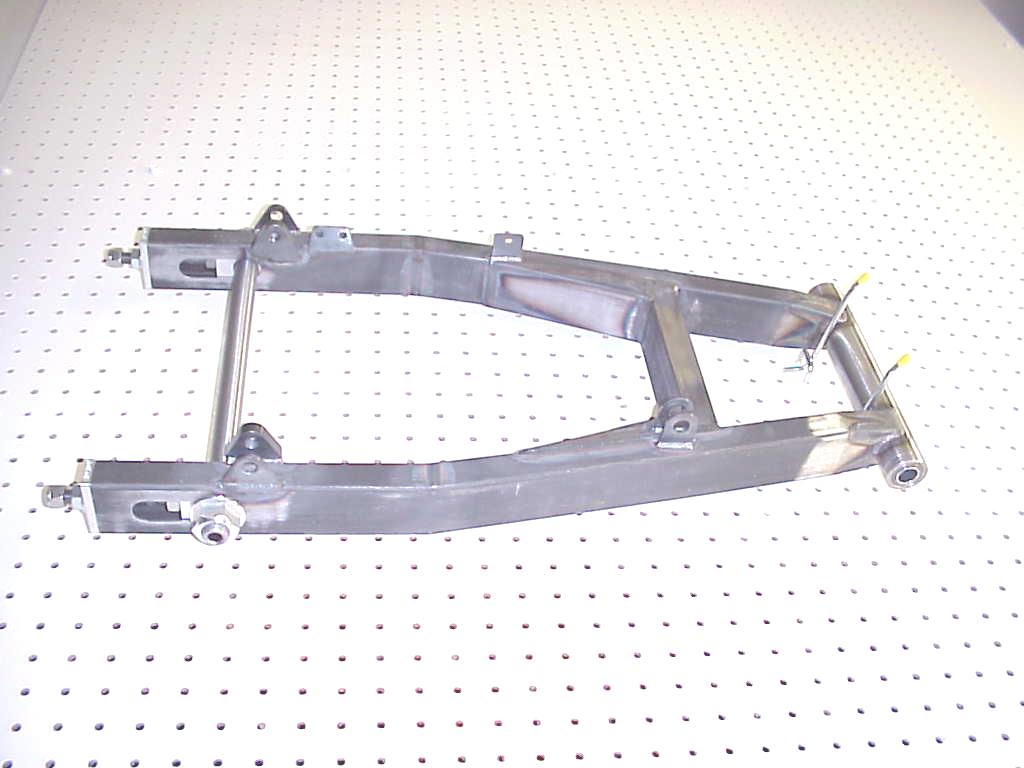

An ultra-high quality box section steel swingarm, developed out of our Type 1
arm, also made to fit like a stock swingarm......A closer look will
show you the quality of this product......Like a lot of our unique items, we have put
a lot of R&D work into the development of these arms....and it has paid off......
These arms are way stronger than stock, professionally made from the best material,
and will accomodate that wide tire you've wanted to put on your bike.....And will last!!

These arms come with high-quality needle bearings and bearing shaft installed in the arm and ready for mounting......

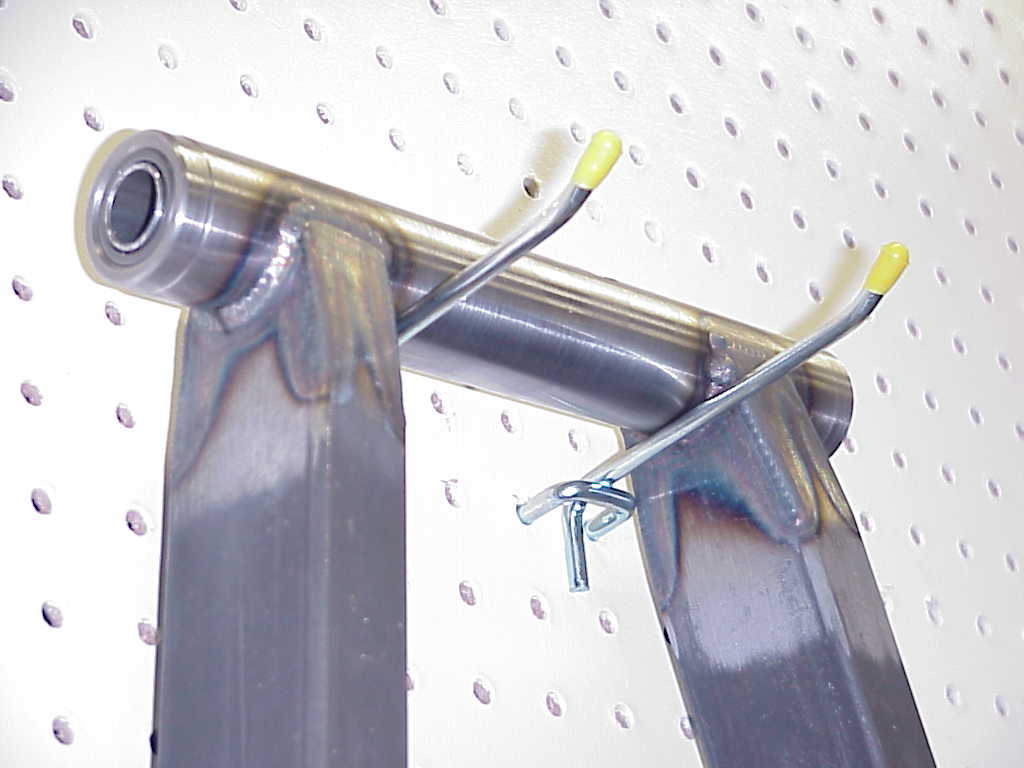

The pivot tube is machined on the ends to accept the stock KZ1000 swingarm end seals, with thread
on the bottom of the pivot tube to accept the stock KZ1000 grease fitting.....

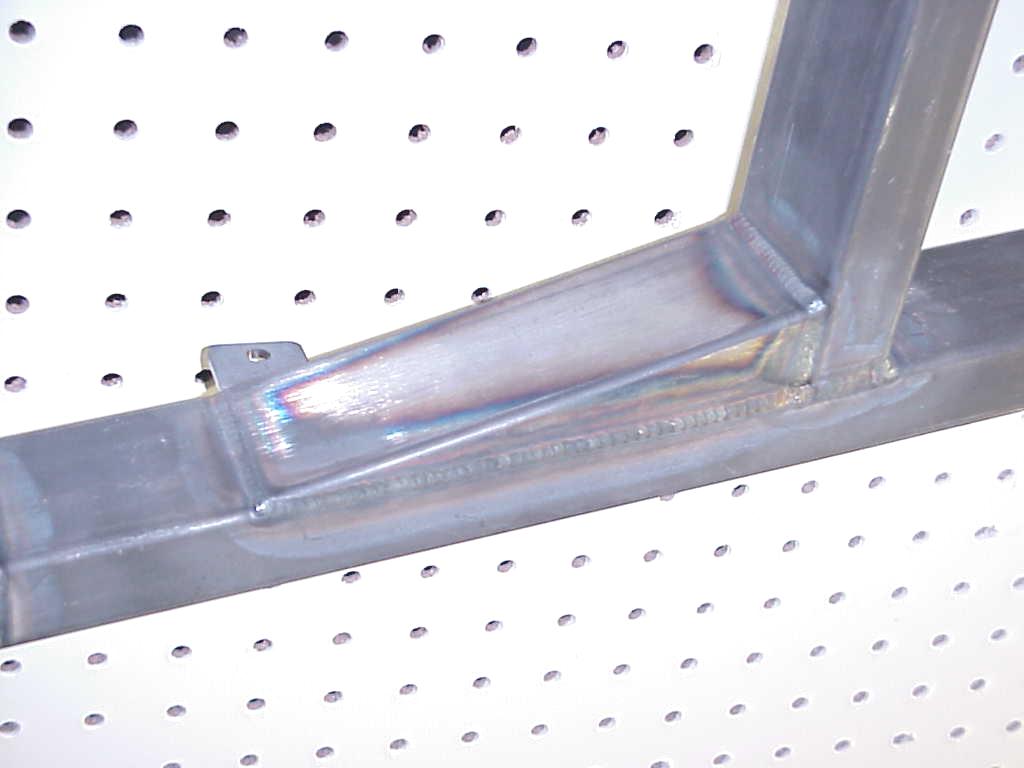

Reinforcing at the cross bar makes these arms extremely strong and rigid........

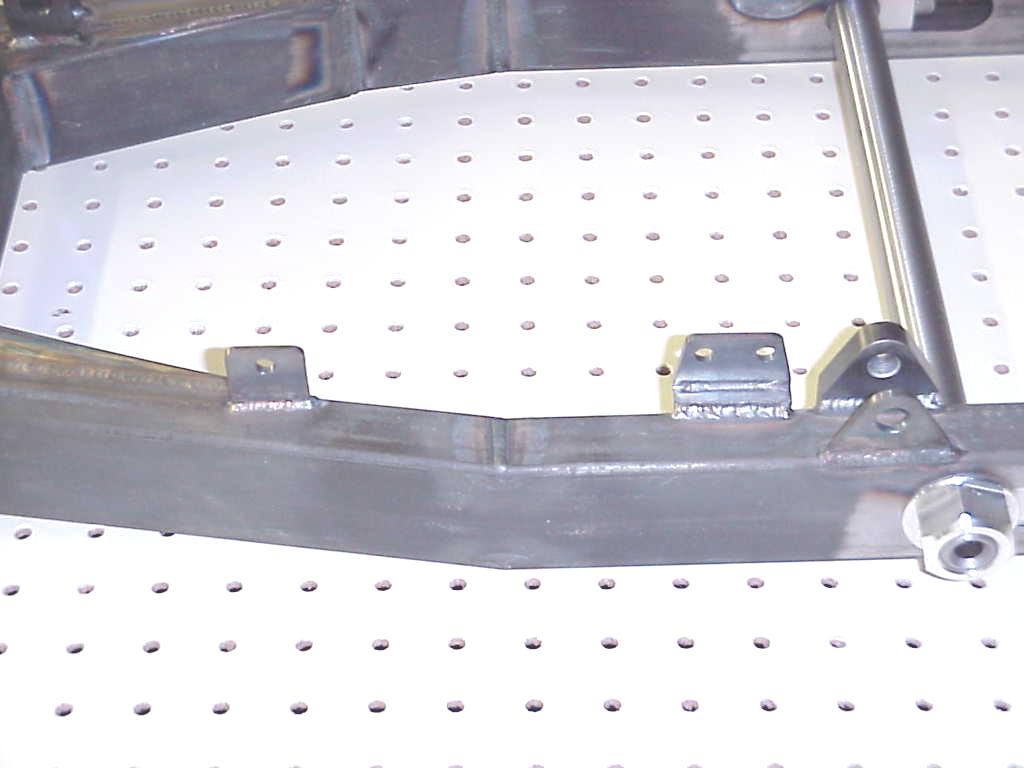

And, chainguard mounts accept the stock 1976 thru 1980  Kaw LTD chainguard .......
Super high-quality axle and chain adjusters are included .......
Caliper stay bracket allows the use of the original stay bar.........Recent, updated version has top chain slipper

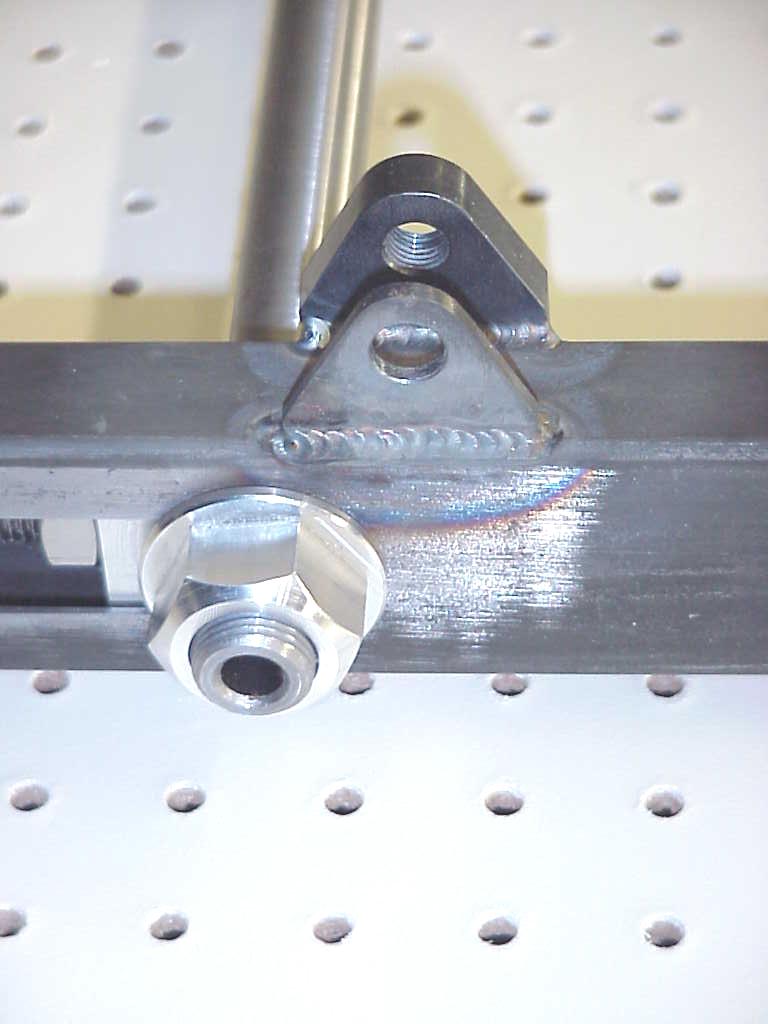

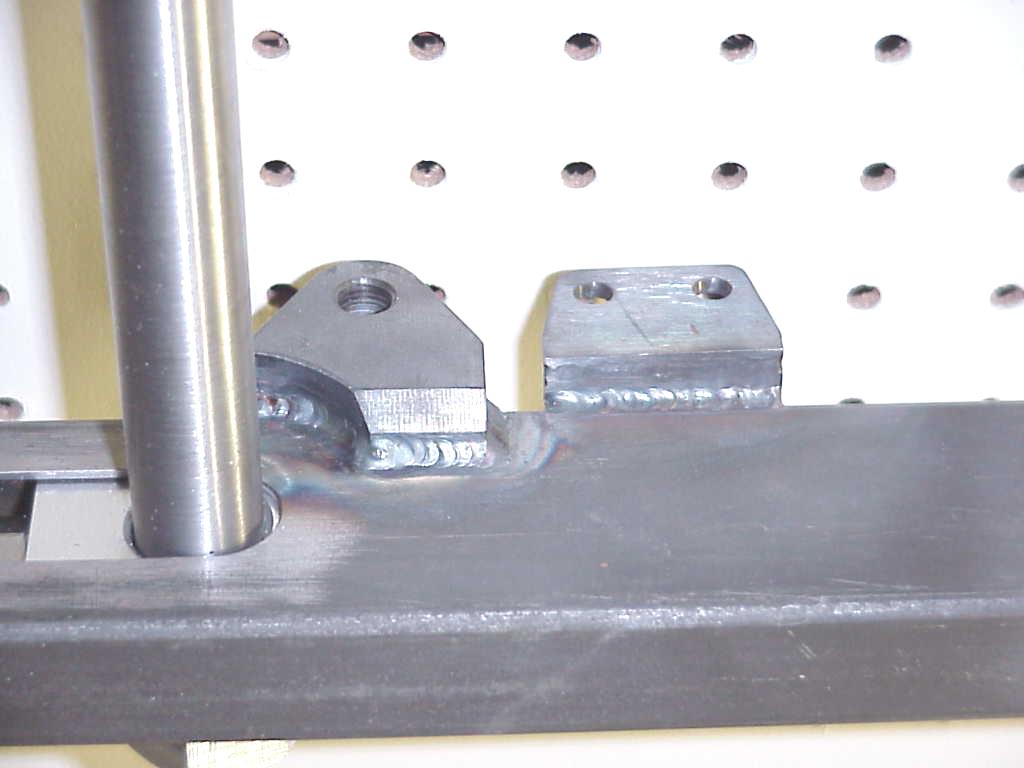

The shock mounts are not only way stronger than stock, but are threaded with the same 10mm X 1.25 thread
as stock for easy installation......and the shock mount location lowers the rear end of your Kaw 1/2".....

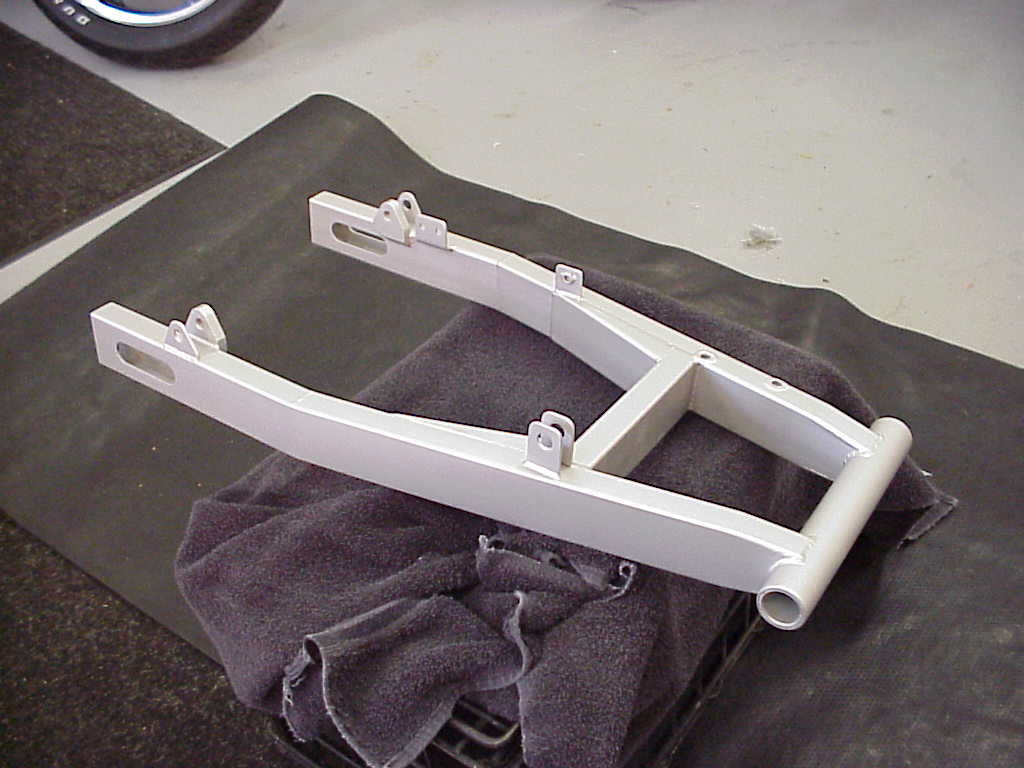

..These swingarms come smooth finish bare steel, and can be painted, or powder coated........
See our  Swingarm Parts  section for more info on some stuff you may want when installing a longer arm...

Finally..... a custom swingarm that is made specifically for for a Kawasaki 900 or 1000!!
2 inch over arms for drum brake models currently in stock.....
Arms for disc brake models Special Order.......4 to 6 weeks for delivery....
