Starter Clutch Parts
Starter clutch parts shown below are the same for all 1973 thru 1980 models, with the exception
of the large starter gear..... There is one type for the 1973 thru 1978 models, and another for the
1979 and 1980 models as described below.....

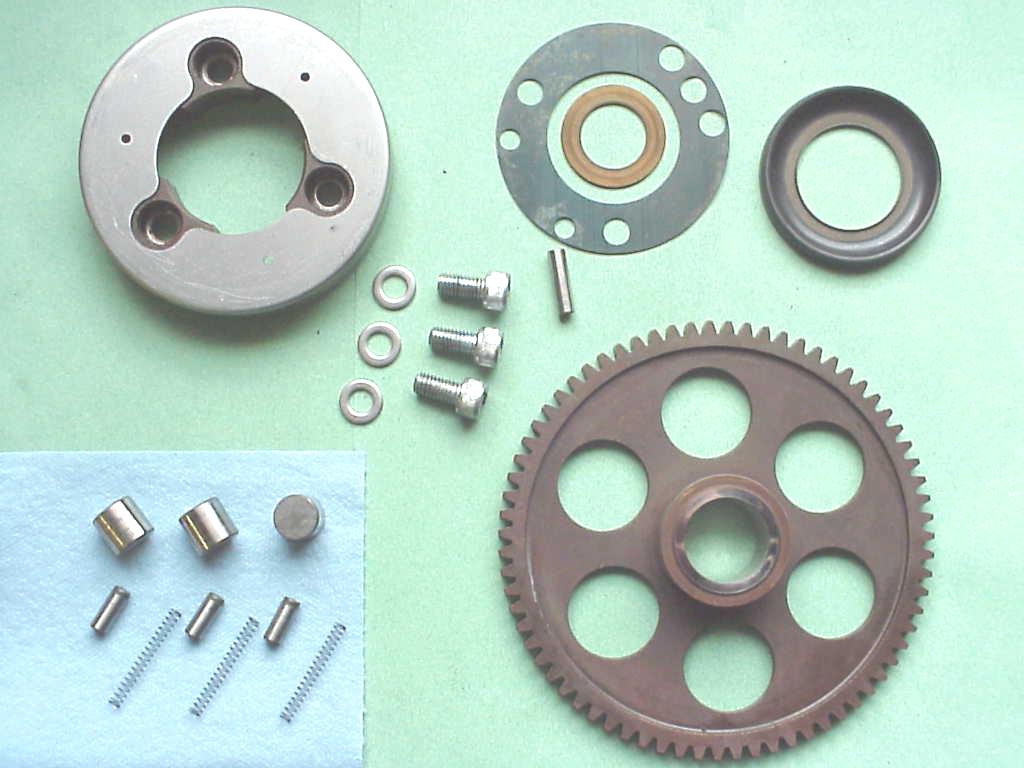

While all of the components are shown in this pic, only the commonly replaced items are
listed for sale below ..... But we do have a good used inventory of all these parts.
To help determine what parts you need, click the link  for our  Starter Clutch Inspection  page.

                    Bottom Left:   KawasakiOEM                                          Center:
                     Starter Clutch Rollers, Pins, & Springs....                                8mm X 16mm Allen Bolts (3 per bike)
                     Roller (3 per bike).............. $6.99 ea.                                                       $2.49 ea. / $7.00 set/ 3
                     Pin            "        .............. $6.99 ea.                                      Note: The washers shown are only
                     Spring       "        ............... $2.99 ea.                                              used on the 1979 & 1980 models.,
                         Set of all 9 pieces .............. $48.00                                                  and are normally re-used

                 Top Left:   KawasakiOEM                                               Bottom Right:
                   Starter Clutch Body / Set.... New NOS:                                     Starter Clutch Gear (Avail. Used Only)
                     Comes with rollers, pins, & springs                                             For 1973 thru 1978 models:  $110.00
                                                                            $124.00                                             For 1979 & 1980 models:    $110.00

                     Not Shown: Alternator rotor woodruff key (for all 1973 thru 1977 models):  $3.20

Prices for good, used alternator rotors on request....

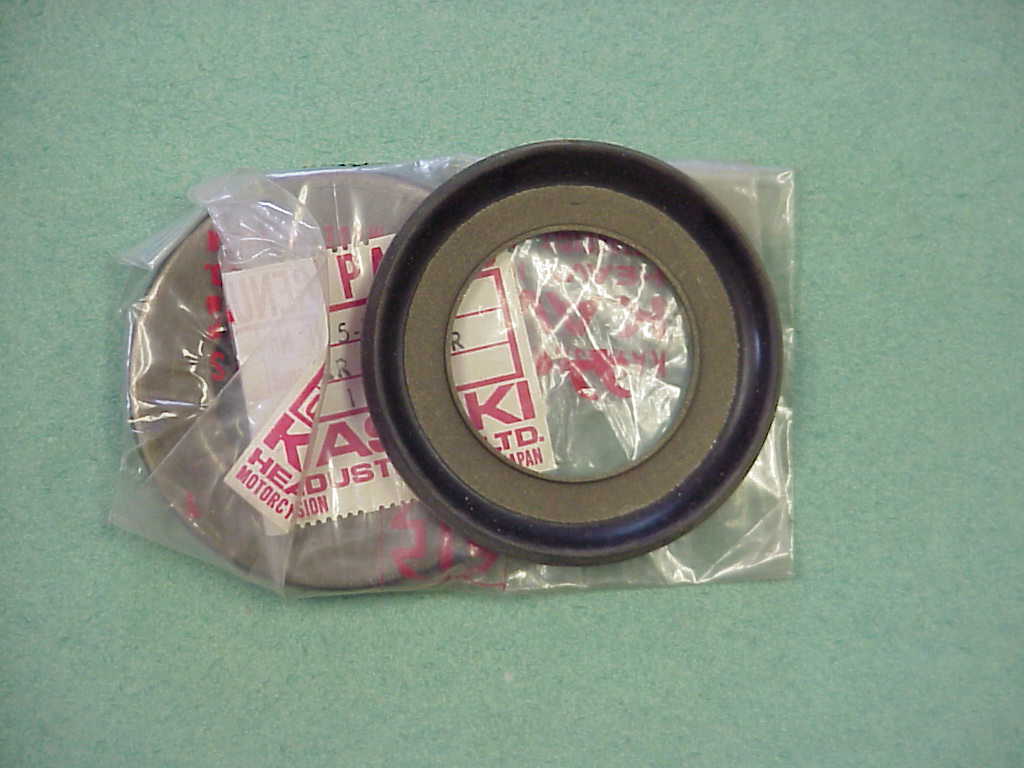

................................. As referred to in our Starter Clutch Inspection   page, these
spacer / dampers are critical in re-assembling the starter clutch on the LH end of the crank -

NLA from Kawasaki, we have a limited supply of new Kawasaki OEM pieces - and some good / used ones ....... Call for Info - - Toll-free 877-271-9292

New pieces start at $32.95 ea.
