Sprockets

We also usually have a good selection of good used countershaft sprockets and rear sprockets
on hand at big savings.........Just ask!
At the bottom of this page, you'll find a chart with some gear ratio information that you
might find useful.....

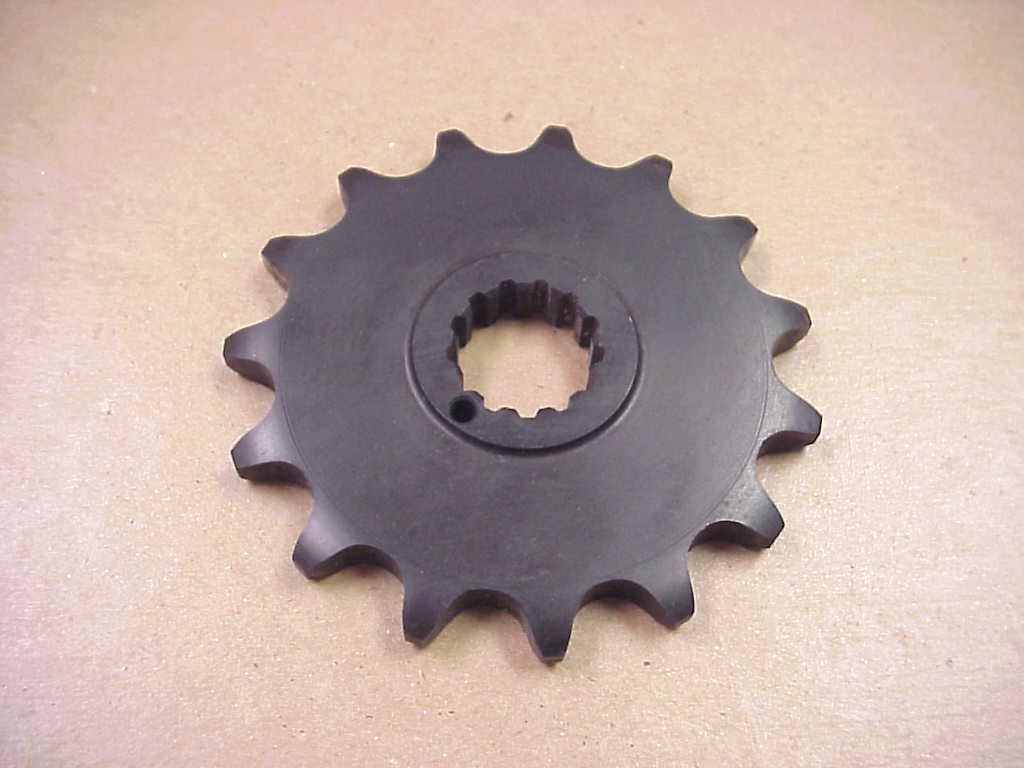

>>> 15 tooth countershaft sprocket is standard equipment on all 1973 to 1980 Kaw 900 & 1000 models.......
Quality as good or better than OEM.....Made in the USA

Replacing the Tab Washer  highly recommended when
changing the front sprocket......

In Stock at Redline Cycle    $30.95

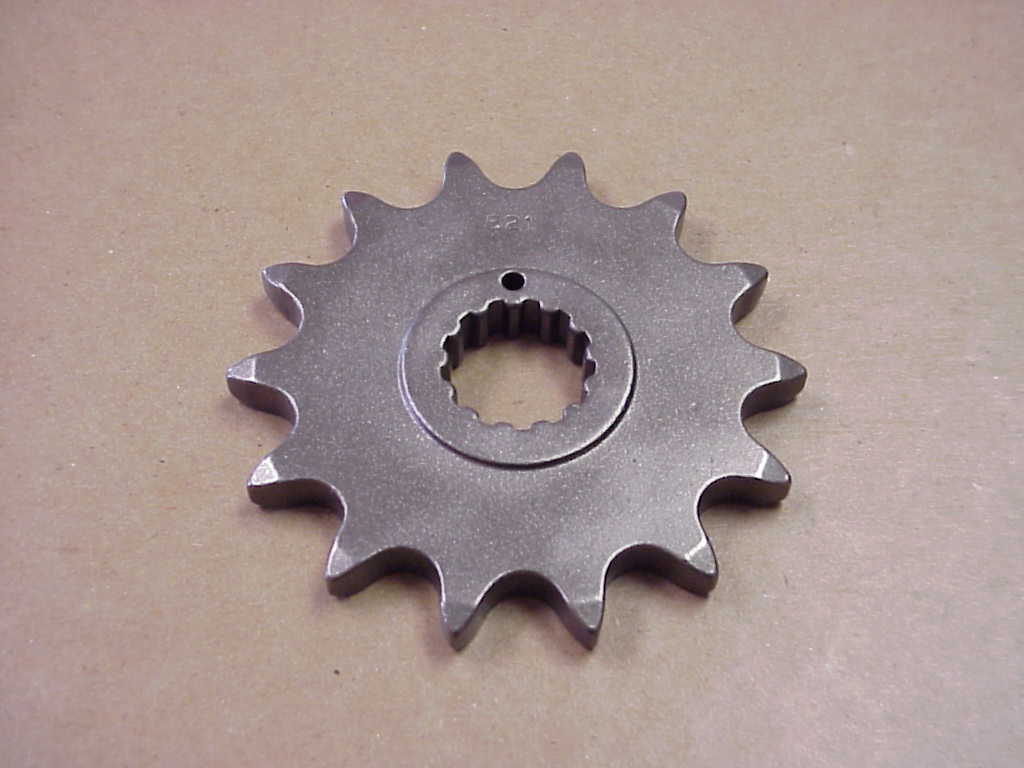

>>>> 14 tooth countershaft sprocket - 1 tooth less than stock on all 1973 to 1980 Kaw 900 & 1000 models.....

If you want better acceleration out of the hole, this is the
easiest, and cheapest way to go. Unlike switching to a larger rear sprocket to accomplish this change, using the 14T front won't require chain mods, removing the rear wheel, or paying the additional cost for a rear sprocket.....
And, if you don't like the results, or want to go back to stock gearing for a highway trip, you just switch back to your old 15T

Replacing the Tab Washer  highly recommended when
changing the front sprocket......

Ultra-high quality - Made in USA...,...  $34.95
In Stock at Redline Cycle

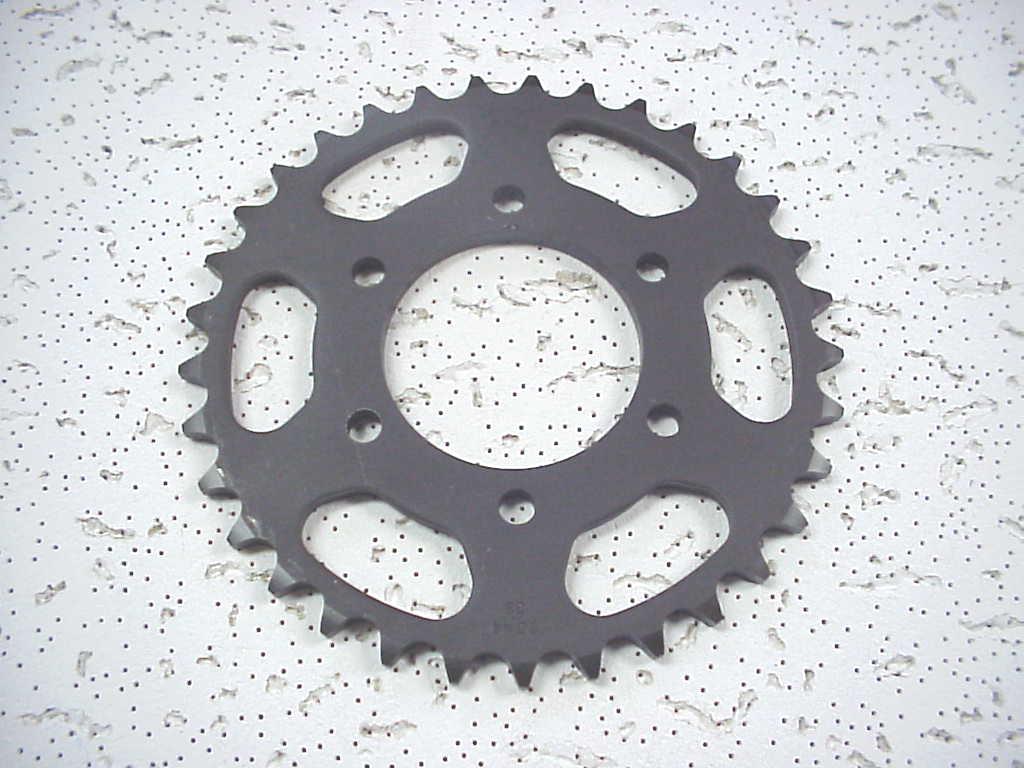

>>> For all 1977 thru 1980 KZ1000 models.....
This sprocket is very similar in design to the original...

This 33 tooth rear sprocket is the standard size
Not interchangeable with 1973 thru 1977 Z-1 and KZ900 models.....Center hole is a different size between the 900's and the 1000's.....
Ultra-high quality.....Made in USA...    $54.95

Note: These sprockets are randomly supplied to us by our
          distributors in both silver/zinc plate and black oxide.
          There is no difference in quality between them. If color
         is important to you, we can supply either silver / zinc
         plate or black....ask about our current stock....

In Stock at Redline Cycle

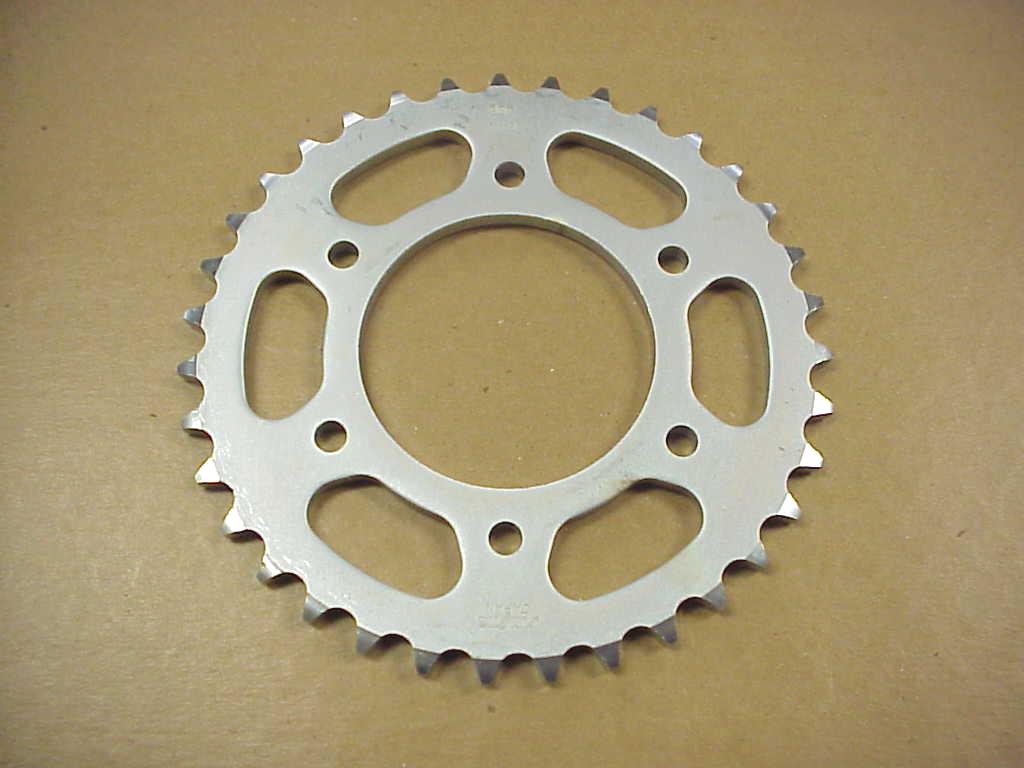

>>>>>>> For all 1973 thru 1977 Z-1 and KZ900A models.....
This sprocket is very similar to the original........

This 35 tooth rear sprocket is the standard size ....For 1976 KZ900B (LTD) models, see item listed below.....

Not interchangeable with 1977 thru 1980 KZ1000 models.....Center hole is a different size between the 900's and the 1000's.....  Ultra-high quality.....Made in USA

In Stock at Redline Cycle    $56.95

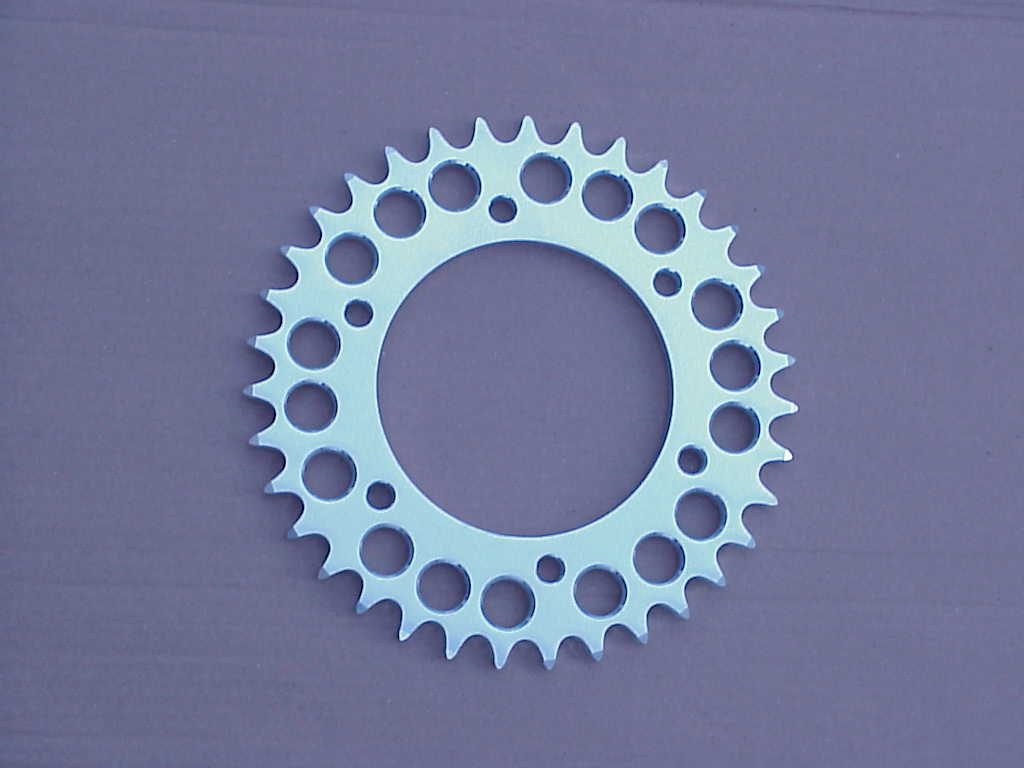

>>>>>>> For the 1976 KZ900B (LTD) models......

Kawasaki OEM / NOS Rear 35T Sprocket....  NLA from Kawasaki

We have a small stock of these OEM sprockets in stock...

Special 35T sprocket for the unique application of the 900 LTD's...........

Limited Availability From Redline Cycle

                                     $119.95


Gear Ratio Chart
Bike / Application Sprocket Sizes (front / rear) Resulting Gear Ratio
73 to 77 Z-1 900 / KZ900A&B 15T / 35T   (Stock)
Chain size 630 X 92L
2.33
77 to 80 KZ1000 (All) 15T / 33T   (Stock)
Chain size 630 X 92L
2.20
73 to 77 Z-1 900 / KZ900 14T / 35T   (1 tooth less c-shaft)
Chain size 630 X 92L
2.50
77 to 80 KZ1000 (All) 14T / 33T   (1 tooth less c-shaft)
Chain size 630 X 92L
2.36
