Lower End Oil Seals / Oil Level Windows / Dyno Cover (stator) Seal

                                                                                                                                        For Engine Gaskets >  Engine Gaskets

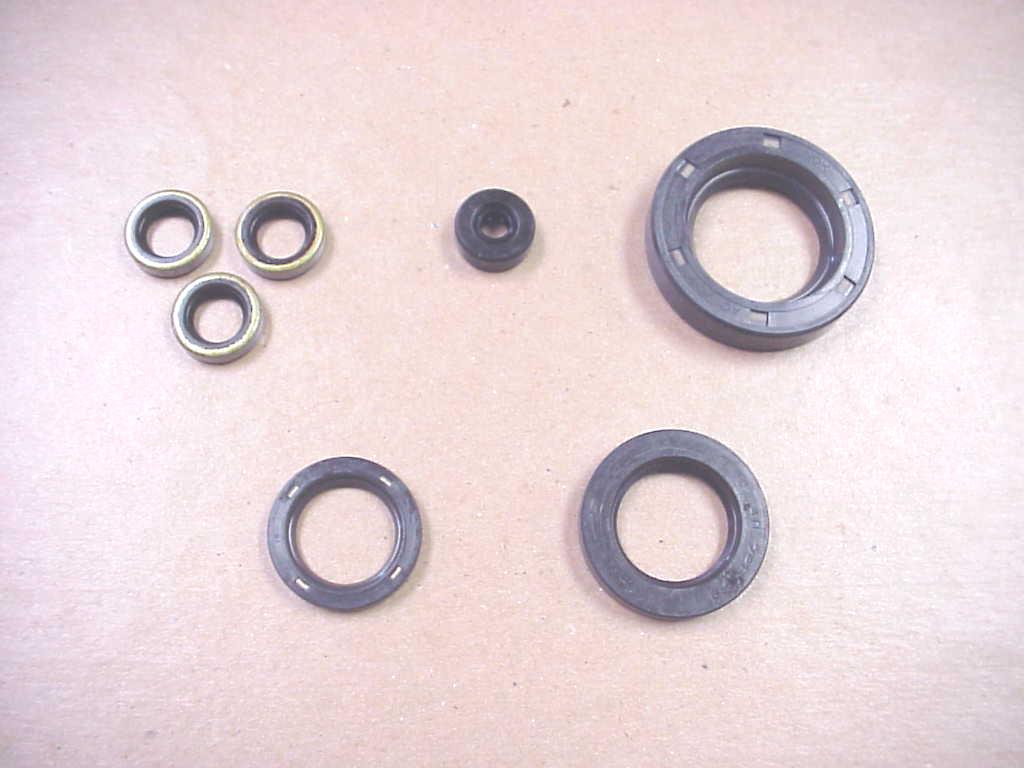

Lower End Oil Seals Sold Individually......For most 1973 thru 1980 900 & 1000 models......

Upper Left: Shift Seal (3 per bike)     $5.29 each
         Shift seal for KZ1000E / ST models $7.99 ea.
Upper Center: Clutch Pushrod Seal    $17.99 each
Upper Right: Countershaft Seal       $11.99 each
                                   ** (See additional info below)
Lower Left: Kickstart Seal           $6.49 each
Lower Right: Inner Point Seal      $8.99 each

In Stock at Redline Cycle


**For all 1973 thru 1980 900 & 1000 models.......

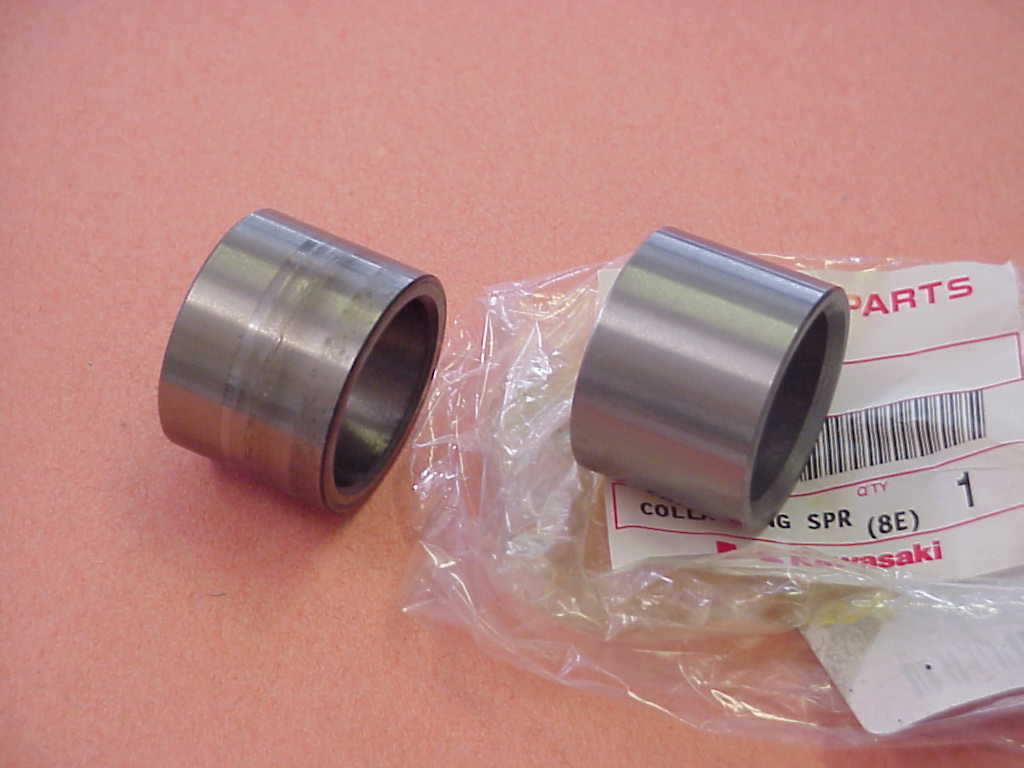

Kawasaki OEM NOS transmission countershaft sprocket spacer......

Excessive wear on the spacer behind the front sprocket is common....... A new seal alone may not stop the leak....
Have a look at this spacer.....If it's beat, replace it....

                                             $26.99
In Stock at Redline Cycle

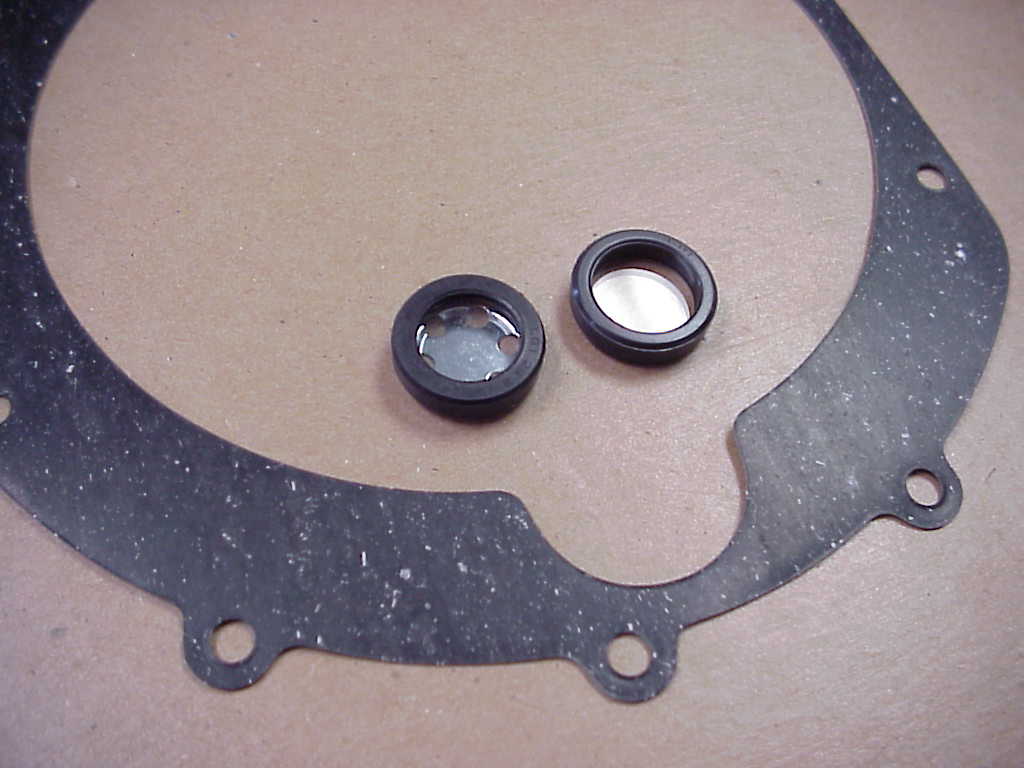

OIL LEVEL WINDOWS  >

Left: For all 1973 thru 1978 900 & 1000 models.....
            Oil level window with metal backing plate.....
                       (Japanese-made aftermarket window)

                                               $20.99 each

Right: For 1979 and 1980 1000 models......
            Clear Oil level window.......
                             (Kawasaki OEM)
                                                $15.95 each
In Stock at Redline Cycle

Note: These oil level windows are interchangeable in most cases....However - - The clear 79-80 type window tends to fit a little looser in most clutch covers. This can be used to your benefit if your clutch cover has been chromed and the clearance has tightened excessively.

For all 1973 thru 1978 Kawasaki 900 & 1000 models ......

This new, repro stator wire seal is the end solution to that
persistent leak at the bottom of the dyno cover......

If your stator and harness are still in nice shape, and you don't mind the extra effort, this new seal alone will do the trick....

                                        $15.99  each
In Stock at Redline Cycle

These OEM Kawasaki oil seals go between the case halves at the main oil galley, and under the oil pump where it mounts to the lower crankcase......

These do not come with any of the oil seal kits available, and don't come with gasket kits - And they should be replaced....

2 per engine......

In Stock at Redline Cycle
                               $3.29 each
