Cylinder Base Gaskets / Cylinder O-Rings

In addition to the gaskets shown below, which are by far the most commonly used,
we carry other base gaskets for specific uses, and we can order a large variety
of different gaskets for special applications.........Just ask!!

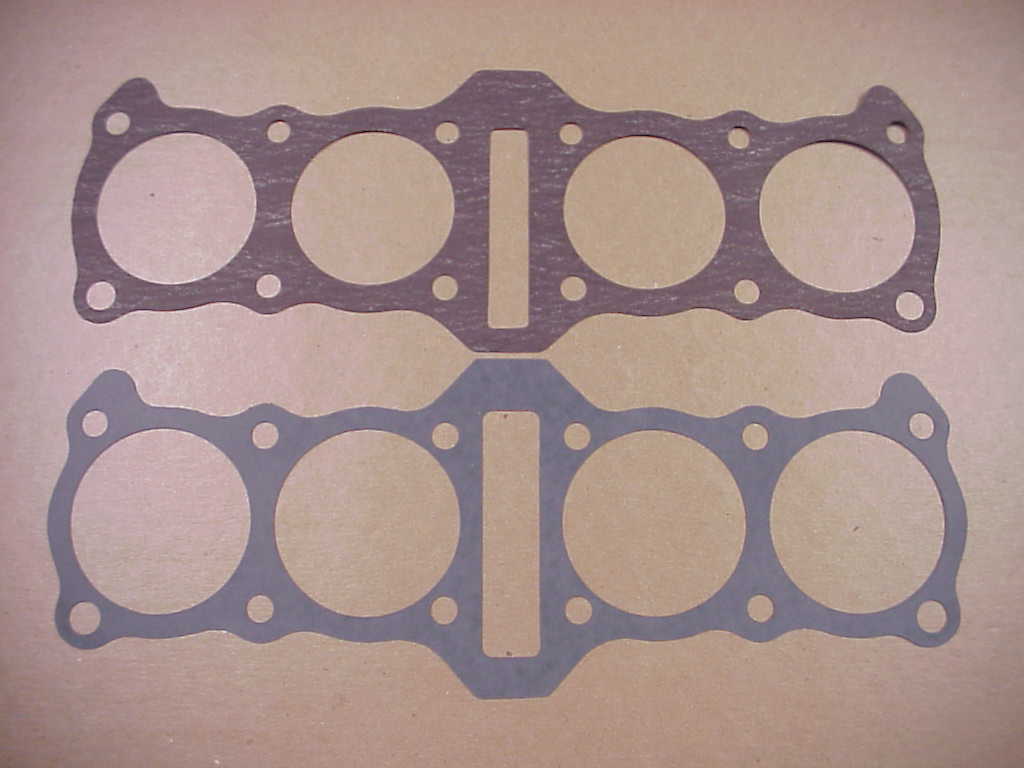

2 types of cylinder base gaskets to cover 95% of all street applications........

Top: Stock-type gasket for all 1973 thru 1980 900 & 1000 models......Quality equal to or better than OEM Kaw
                                        $17.99 ea.

Bottom: Performance-type .020 thick gasket has superior sealing capability, and will work on 1000cc (70mm) bore cylinders up to 1260cc (78mm) bore cylinders, and has a sleeve opening of 3.200"......Note:While these are excellent gaskets for stock 1000cc applications, they do extend outward slightly past the upper case / cyl. base joint when mounted, and may not satisfy those doing a concours restoration due to the slight difference in appearance....  $13.99  ea.

In Stock at Redline Cycle




..............
...............

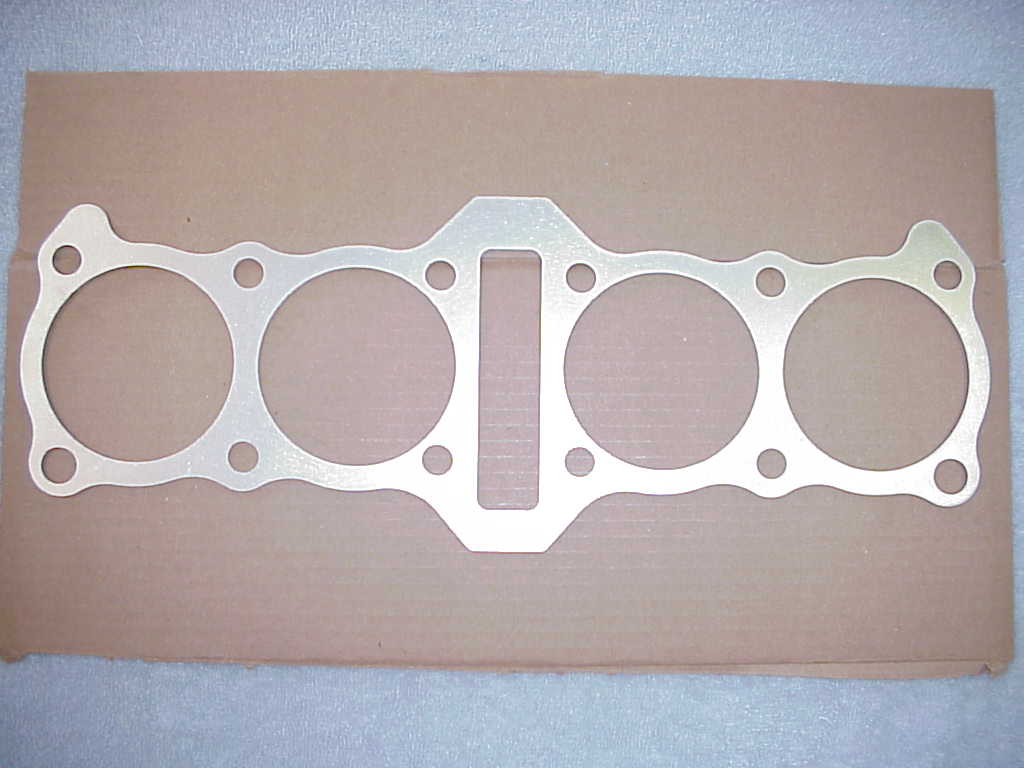

Aluminum base gaskets...........

Used for the specific purpose of lowering compression ratios in all 1973 thru 1980 900's and 1000's with bore kits.....

If your engine has a problem with pinging when hot, this could be the answer........

Available in .040 and .060 thickness

                                       $41.95 each

In Stock at Redline Cycle

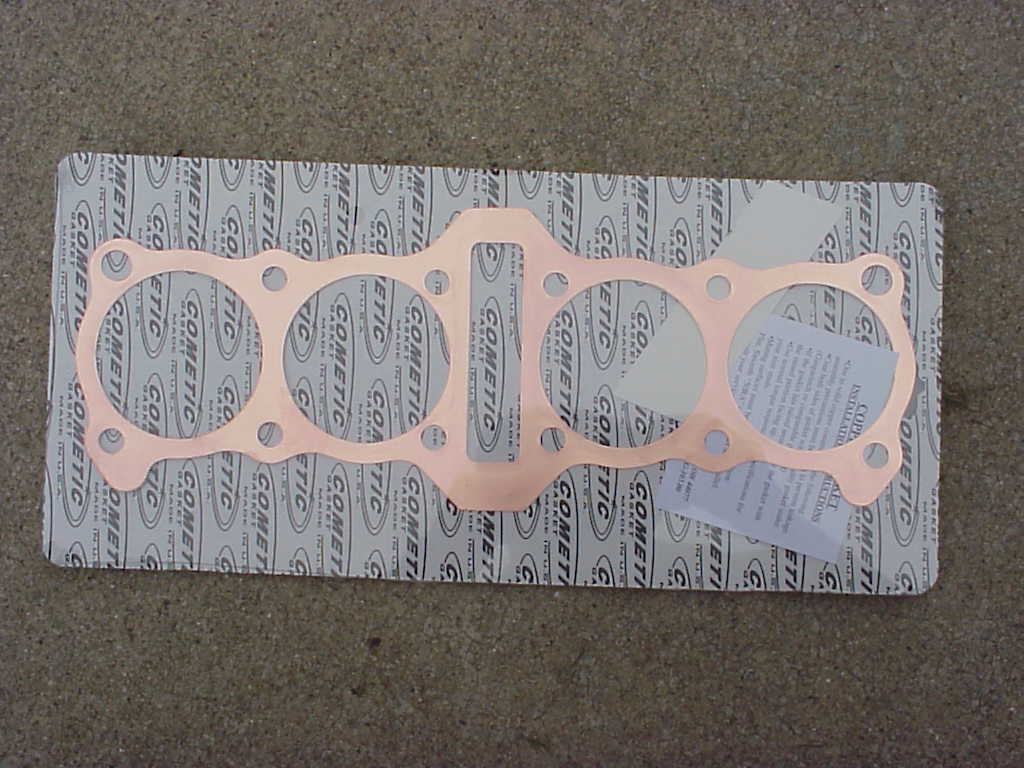

............................ For big-bore / sleeved cylinders...

.020thick copper base gasket..... 3.20 I.D.

                                                                                  $39.95 ea.


Limited Availabilty

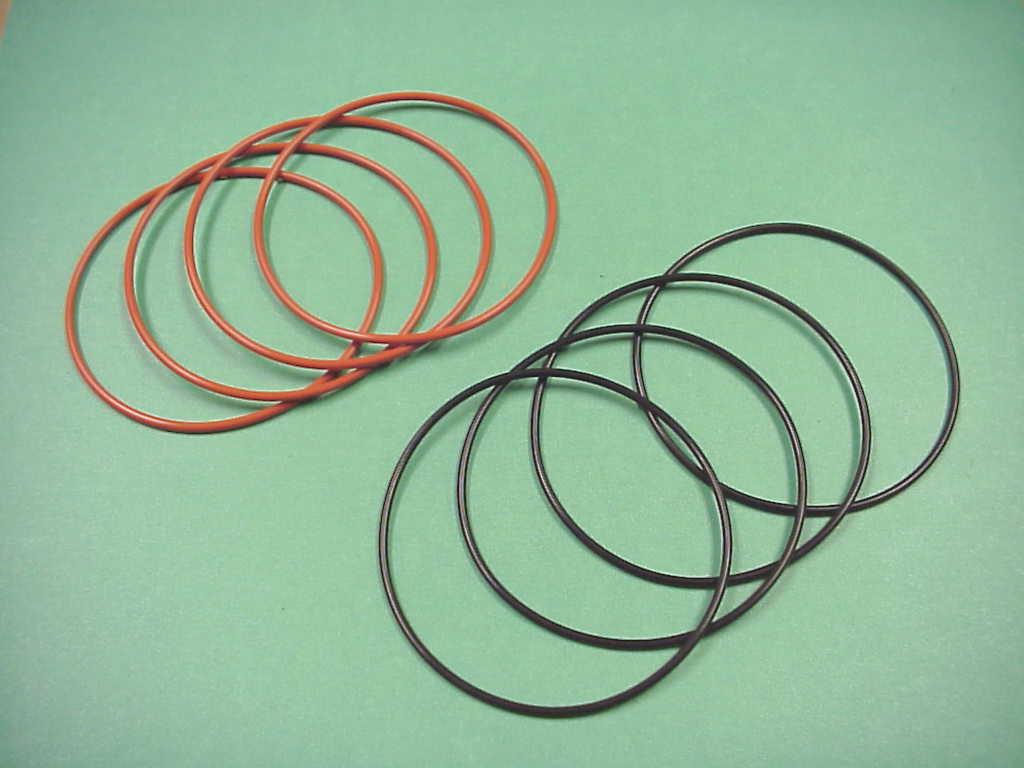

................... Used along with the cylinder base gasket around the sleeves on all 1973 thru 1978 900 & 1000 models.....Not required on the 1979 and 1980 1000's.....

.....4 required per engine.......

Aftermarket (orange) base o-rings will do the job at an economical price.......   $19.00   set of 4

In Stock at Redline Cycle

Kawasaki OEM (black) -   $32.00     (special order)
