Front Fork Tubes / Fork Relief Valves

The new front fork tubes that we sell are made of the finest materials, and are actually
way stronger than the original Kawasaki tubes......
A small section at the bottom of this page shows how to identify if your bike has the "Early" or "Late"style forks....

We also carry a full line of front fork  Seals and Dust Boots  for Old Kaws, and
a very good selection of Fork Hardware  for these bikes....Just call us toll-free at 877-271-9292
with your parts needs.....

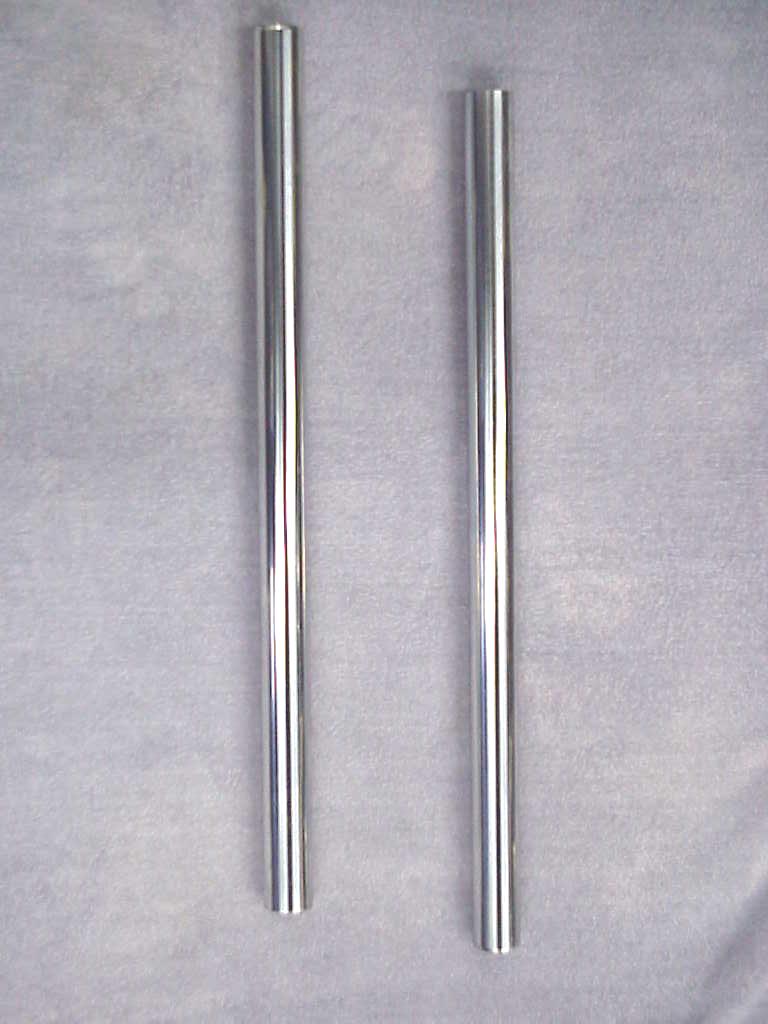

For all 1973 thru 1980 Kawasaki 900 & 1000 models ........

Made in the USA........Very high quality fork tubes are much stronger than stock..........

Available in hard chrome finish.......

Sold in Sets......... See identification info below.....

   "Early" style tubes have the fork cap with the 22mm hex drive
    (all 1973 thru 1977 900 models / 1977 KZ1000A1)
                                            $299.00 pair

   "Late" style tubes have the 1/2 inch square drive caps
                                            $399.00 pair
    (1977 KZ1000B1-LTD / 1978 and later 1000 models)
   From In Stock to 3 week wait on "Late Style" tubes

   For fork seals and fork boots   Click Here

   For fork oil & misc. hardware  Click Here






Since "early" and "late" fork tubes are largely interchangeable between models. many Old Kaws no longer have their original fork tube style.....

The easiest way to identify whether your bike has an "early" or "late" fork tube is by the top cap it uses......

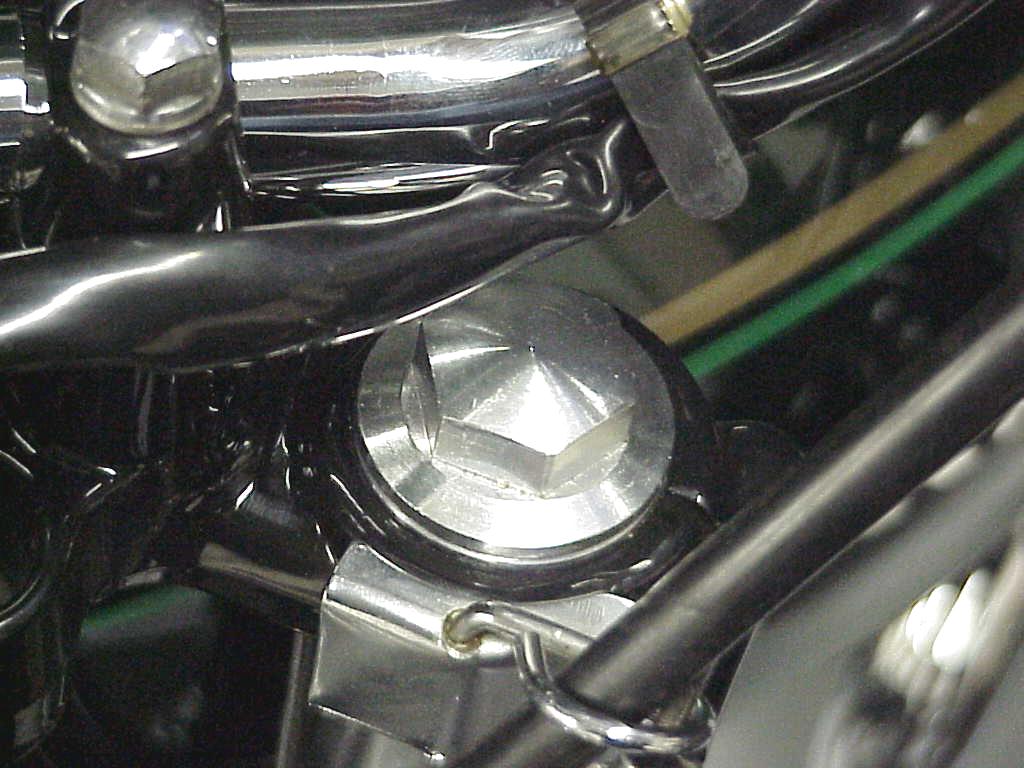

On the left, the "early" style fork tube. originally used on the 1973 thru 1977 models, uses an aluminum cap with a 22mm hex top........

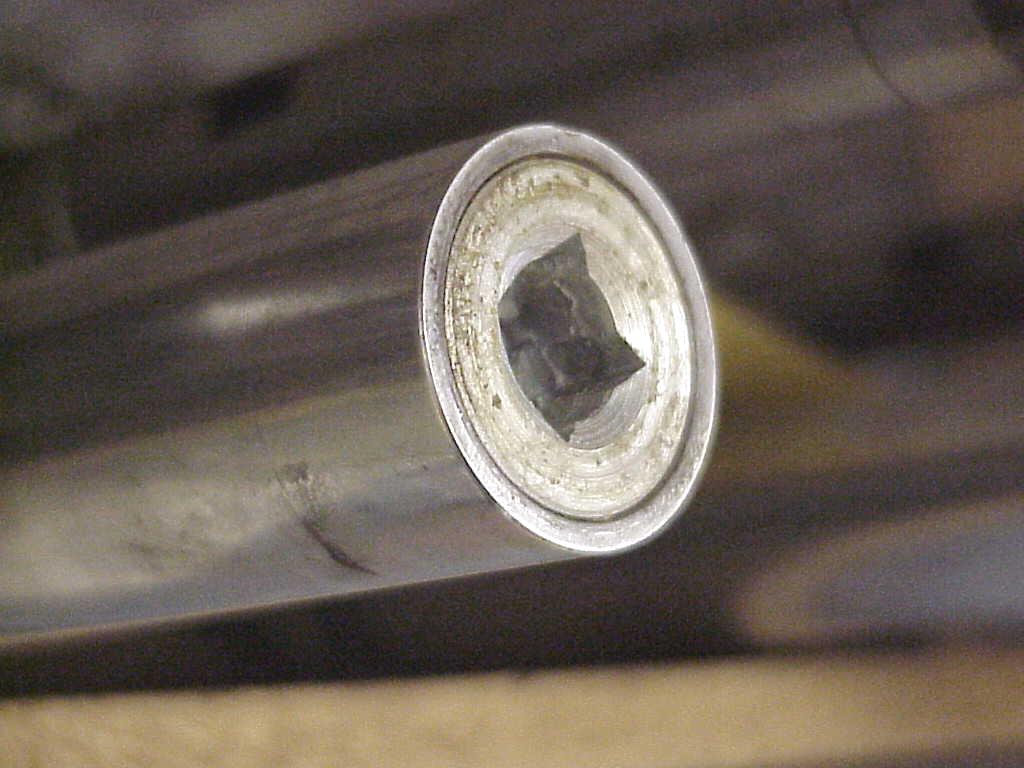

On the right, the "late" style fork tube uses a recessed cap with a female 1/2 inch square drive......This is covered by a rubber cap.....Often missing......

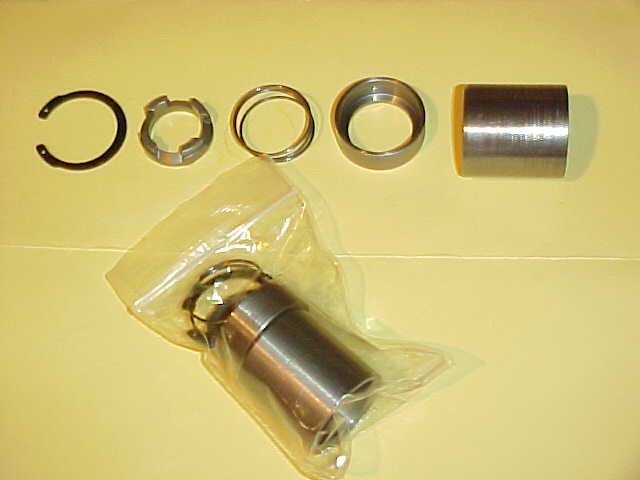

Fork Tube Relief Valve

Relief valve assembly found in the bottom of the fork tubes on the
1973 thru 1977 900 models / 1977 KZ1000 models.....

If you threw away your old tubes not realizing that these were in there -
You're not the first guy to do that !!

Or - they might have been so rusted in that you couldn't get them out -
We have these exceptionally high-quality, Japanese-Made replacements....

$45.95 per valve assembly / 2 per bike
