Redline Cycle Service, Inc.

Any item shipped U.S. Mail / UPS to anywhere in the world

Camchain Roller / Guide / Tensioner / Idler Gears / Idler Tower

OEM quality camchain parts - Made in Japan - for all 1973 thru 1980 900 & 1000 models.....
You'll be replacing these on almost every top end teardown....Besides old age, failure to adjust the camchain tension is usually the premature end of these important parts....

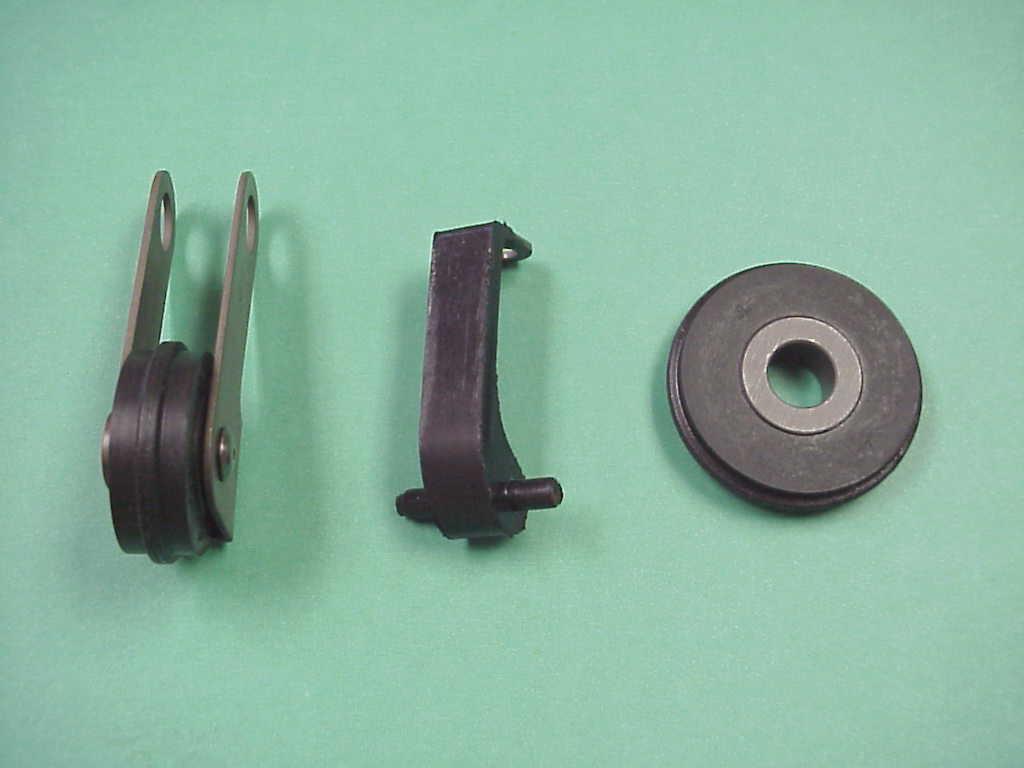

Far Left: Camchain tensioner roller   (Kawasaki OEM) NLA
                                         $139.95

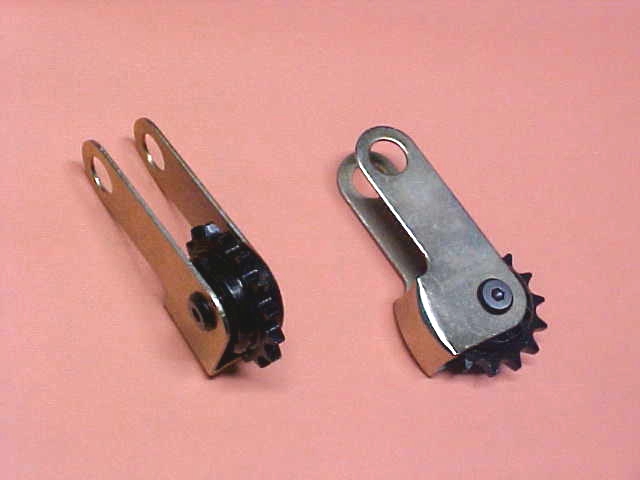

Far Right: Hi-Perf Camchain tensioner roller (Aftmkt.)
                                             $104.95
Center: Camchain front guide   $39.95   (Kawasaki OEM)
Right: Camchain lower roller    $39.95   (Kawasaki OEM)

In Stock at Redline Cycle

	OEM quality camchain parts - Made in Japan - for all 1973 thru 1980 900 & 1000 models..... You'll be replacing these on almost every top end teardown....Besides old age, failure to adjust the camchain tension is usually the premature end of these important parts.... Far Left: Camchain tensioner roller (Kawasaki OEM) NLA $139.95 Far Right: Hi-Perf Camchain tensioner roller (Aftmkt.) $104.95 Center: Camchain front guide $39.95 (Kawasaki OEM) Right: Camchain lower roller $39.95 (Kawasaki OEM) In Stock at Redline Cycle

Note: Installing a new Heavy-Duty Camchain along with the new parts above during a complete or top-end engine
rebuild - - Will double or triple the life of these parts - And it will also have the benefit of creating a stronger
engine, with more accurate valve timing......

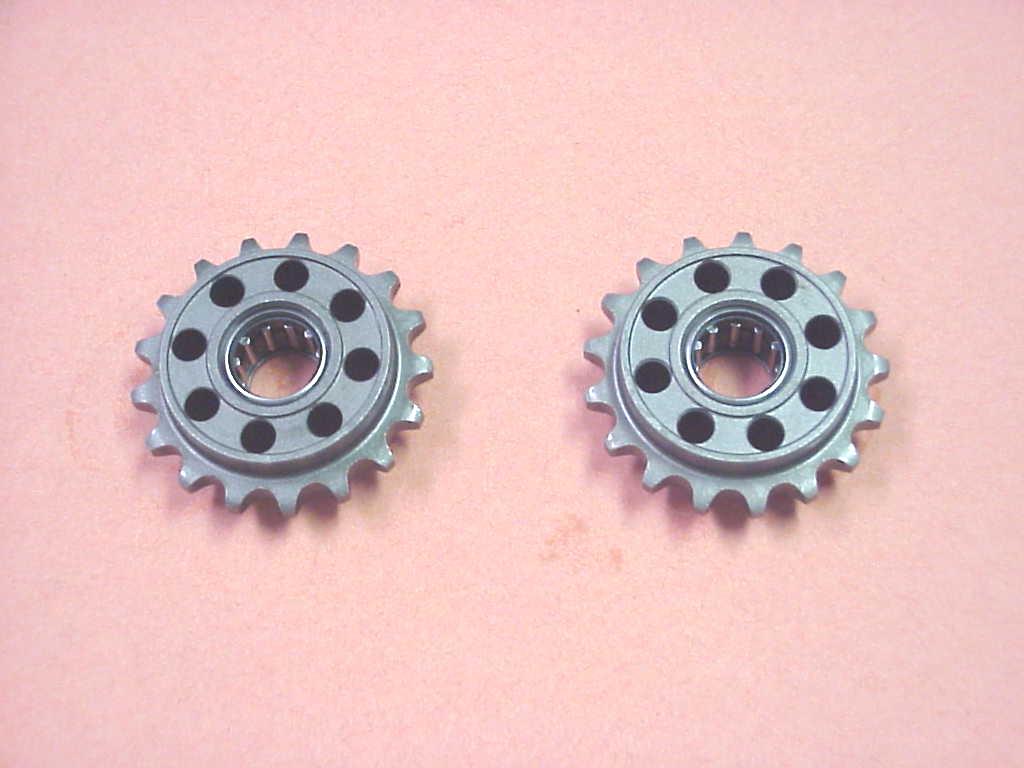

High-Perf / Ultra High Quality cam chain idler gears for all 1973 thru 1980 900 & 1000 models.......
Check the center bearing inserts on your gears.... If there is sideplay on the bearing, replacement is in order.......
.........Before they fall apart!
With the OEM gears now over $140.00 each, these are also a far cheaper alternative...
Limited Availability - From "In Stock" to 3 weeks wait $99.99 each

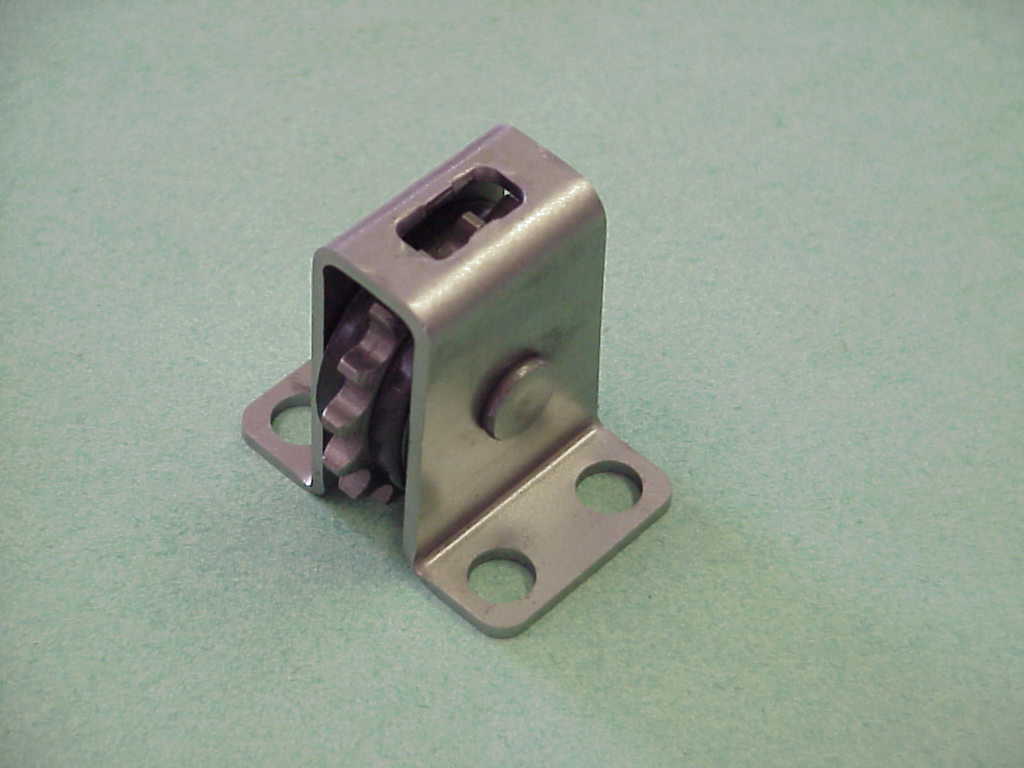

....	New cam chain idler towers for all 1973 thru 1980 Kawasaki 900 & 1000 models... (Tower for 1977-1978 KZ1000 shown at left)..... Very high-quailty, Japanese-made replacement idler towers are a direct fit on all 1973 thru 1980 Kawasaki 900 & 1000 models...... Includes bracket and new idler gear...... These towers use the original equipment style Dampers and Spacers for their repective years / models.... $179.00 Limited Availabilty - From "In-Stock" to 2 week wait

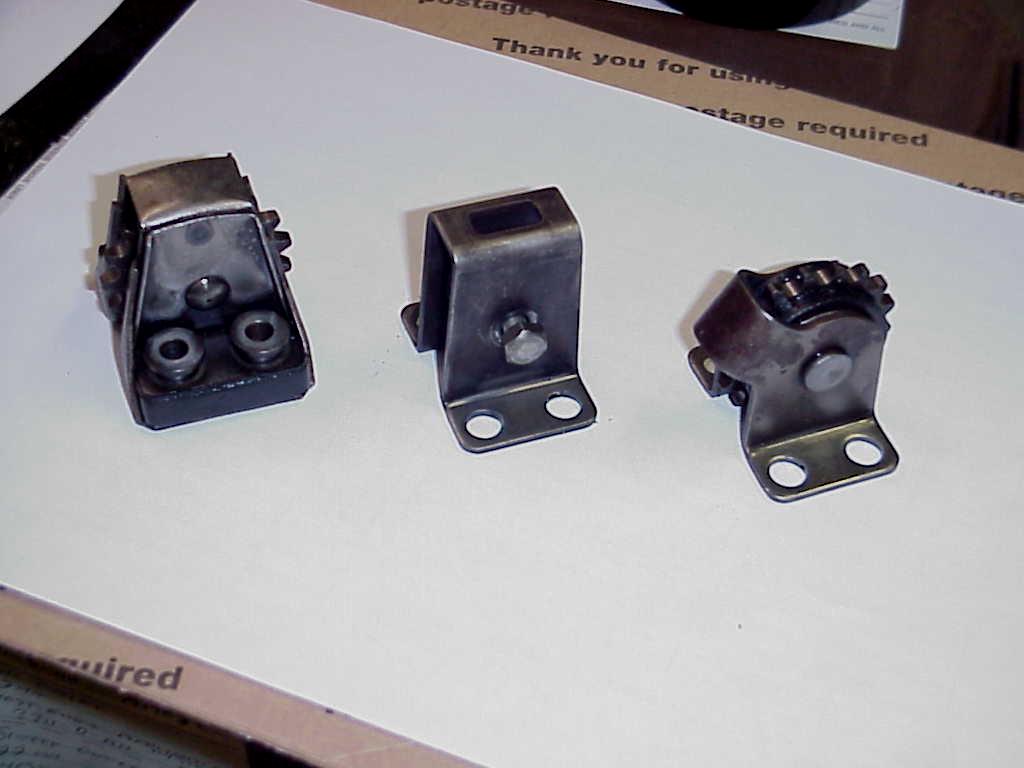

	What type of cam chain idler tower does your bike have? Your engine may not have its original idler tower on it.... Kawasaki used several different types of camchain idler brackets on the 1973 thru 1980 900 & 1000 models.... These are not interchangeable - The 900's and 1000's don't use the same Idler Dampers ..... Note that the "900" type dampers are different from top to bottom, and the "1000" type are the same top and bottom....Using the correct idler tower is essential for proper chain tension between the camshafts - On the left - This is the tower used on the 1973 thru 1977 900 models, which uses the dampers so marked above..... Center - This is the bracket used on the 1977 and 1978 1000 models..... There are 2 types: One has a bolt for removing the gear, and one doesn't - but both types use the "1977 thru 1980 1000" type dampers shown above..... Right - This bracket was used on the 1979 and 1980 1000's - and it also uses the "1977 thru 1980 1000" type dampers....

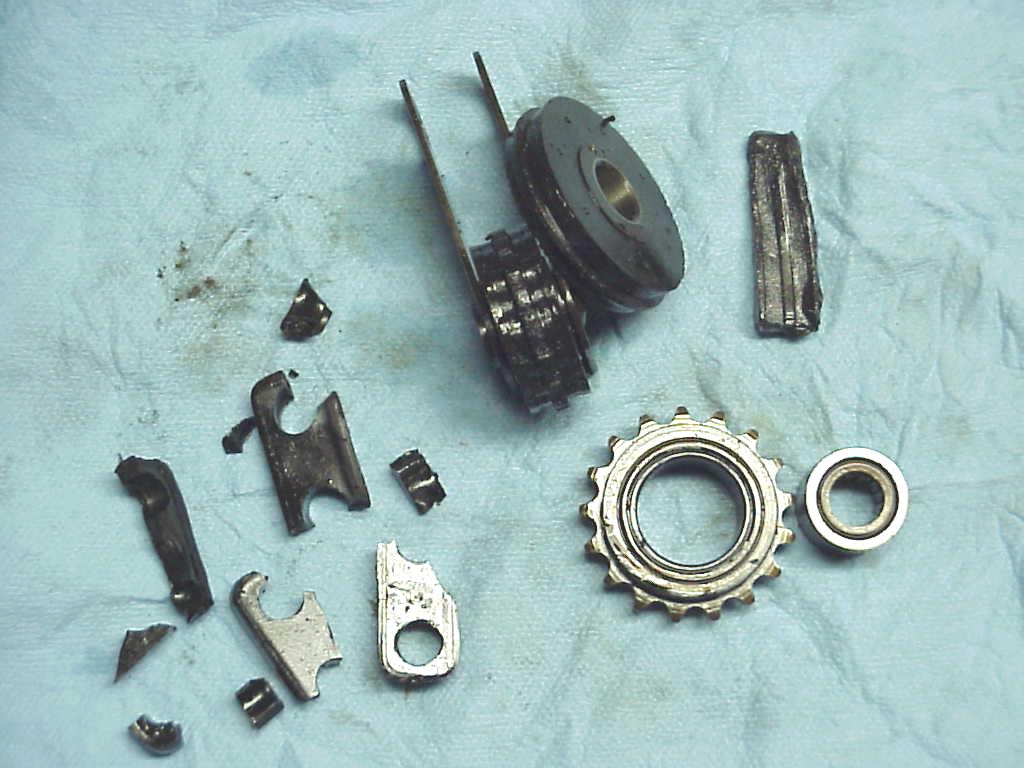

How bad can those guides and rollers get in an old Kaw engine.......
These were taken from a Kaw 1000 that actually still ran...but didn't run too well....
